Description

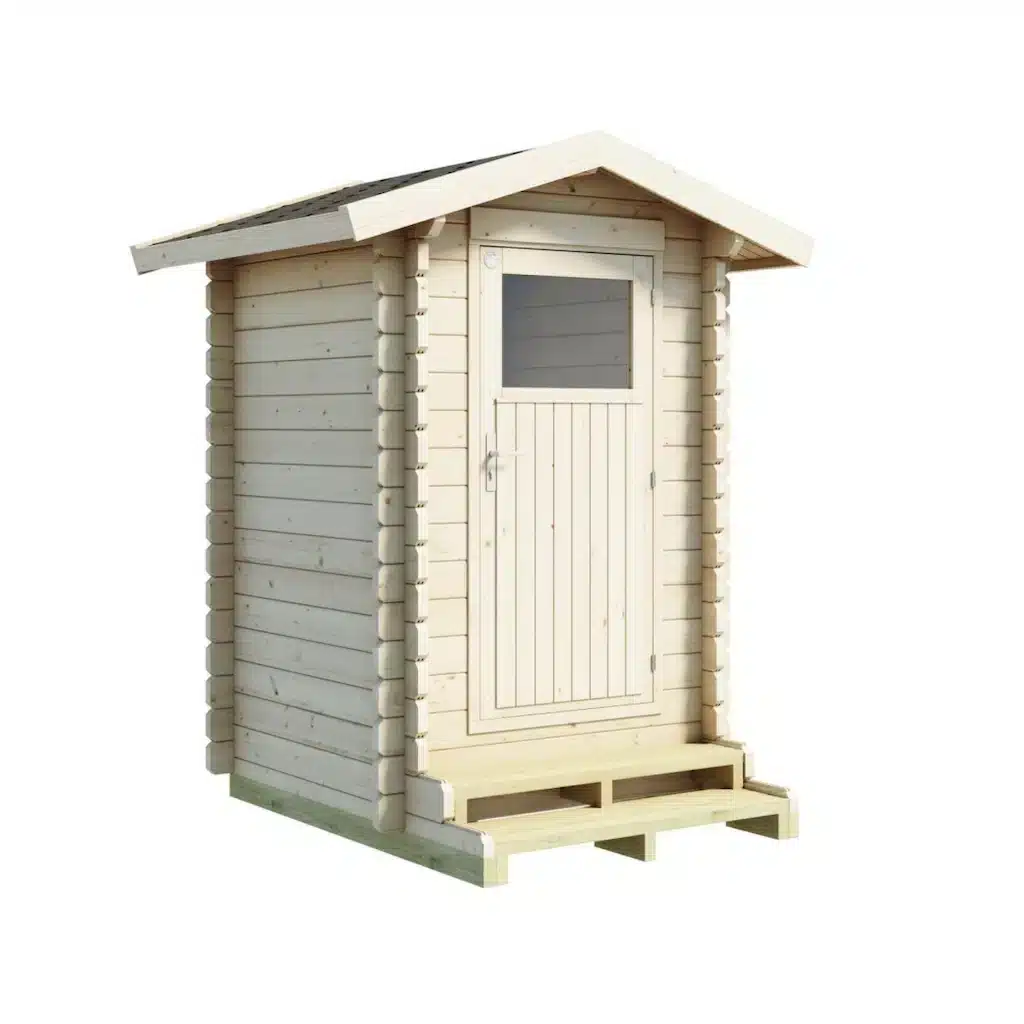

Lillevilla Ratamo is made of 40 mm lightweight logs. Its base measures 140 x 140 cm, with a ridge height of 260 cm and a sidewall height of 223 cm. The outdoor toilet is designed for use with a separately purchased toilet container, which is available in various models. Lillevilla Ratamo includes a solid floor and supports both above-floor and in-floor toilet containers. The required floor opening for the container is made during installation.

Delivery contents

The product package includes logs, a door, floorboards, roofing boards, fittings, nails, and screws. Shingle roofing is included in the delivery. Tile roofing is not recommended. The roofing material must be installed immediately after the building is assembled.

The cabin components are pre-processed at the factory. However, some assembly is required, so prepare standard tools such as a tape measure, spirit level, hammer, saw, screwdriver, and drill.

Surface Treatment

The structure’s surface treatment should be carried out immediately after assembly, weather permitting. Use breathable surface treatment products designed for log surfaces. Paints forming non-breathable plastic films must not be used. Tips for surface treatment can be found via the link on this page.

Building permit information

Check in advance with your local building permit authority to determine if a building permit is required.

Technical information:

Floor Area (m²): 2
Wall Thickness (mm): 40
Ridge Height (mm): 2610
Sidewall Height (mm): 2230
Roof Area (m²): 3.8
Roof Dimensions (mm x mm): 1840 x 1840
Ridge Length (mm): 1800
Slope Length (mm): 1066
Roof Board Thickness (mm): 16
Floor Board Thickness (mm): 16
Door: Type N8 (848×1772)
Roofing Material: Shingle roofing
Package Dimensions (mm) and Weight: 2150 x 660 x 1150 / 425 kg
EAN: 6418635049037
Product Code (SKU): 0140 14 14 00
