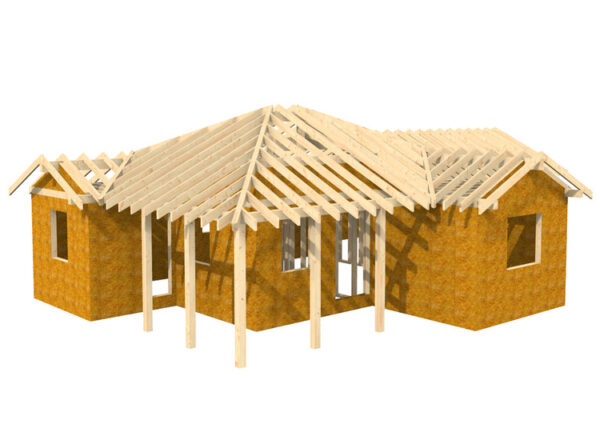

External Prefabricated Walls
Thickness: 207 mm
Timber Framework
Softwood board:

• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)
• Dimensions: 195×72 mm

Wind protection board:

• OSB – 3
• Thickness – 12 mm

Internal Structural Walls

Thickness: 195 mm

Timber Framework:

Softwood board:

• Kiln dried (16%)
• Planned, calibrated
• Graduated (C16/C24)
• Dimensions 195×72 mm

Joists System. Quantity: 1 Set

Joist’s Beams:

• Dimensions 95 x 195 mm (Softwood)
• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)

Rafter system. Quantity: 1 Set

Rafters:

• Dimensions 70 x 195 mm (Softwood)
• Kiln dried (16%)
• Planned, calibrated
• Graduated (C16/C24)

Purlins:

• Dimensions (boards 70×195 mm; 140×195 mm; 210×195 mm):
• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)
• Glue – D4 Compatible

Full set of installation hardware.

External Prefabricated Walls
Thickness: 219,5 mm
Timber Framework
Softwood board:

• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)
• Dimensions: 195×70 mm

Wind protection board:

• OSB – 3
• Thickness – 12 mm

Insulation:
RockWool Superrock:

• Lambda D=0.035 W/mK
• U-value (200 mm)= 0.175 W/m2K
• Euroclass – A1

Vapor membrane:
Primavap-Sd-8
Internal board:
Gypsum cardboard

• Thickness – 12.5 mm

Internal Structural Walls
Thickness: 195 mm

Timber Framework:
Softwood board:

• Kiln dried (16%)
• Planned, calibrated
• Graduated (C16/C24)
• Dimensions 195x72mm

Joists System. Quantity: 1 Set

Joist’s Beams:

• Dimensions 95 x 195 mm (Softwood):
• Kiln dried (16%)
• Planned, calibrated
• Graduated (C16/C24)Rafter system. Quantity: 1 Set

Rafters:

• Dimensions 70 x 195 mm (Softwood):
• Kiln dried (16%)
• Planned, calibrated
• Graduated (C16/C24)

Purlins:

• Dimensions (boards 70×195 mm; 140×195 mm; 210×195 mm):
• Kiln dried (16%)
• Planned, calibrated
• Graduated (C16/C24)
• Glue – D4 Compatible

Full set of installation hardware.

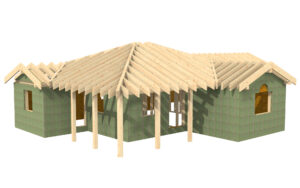

External Prefabricated Walls
Thickness: 319 mm
Timber Framework
Softwood board:

• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)
• Dimensions: 195×70 mm

Wind protection board:

• OSB – 3
• Thickness – 12 mm

Facade membrane:

• Density 130 g/m²
• Effective thickness of the vapor diffusion 0,015 m
• Vapour throughout 80g/m²

Facade insulation:

Rockwool FrontRock MAX E 100 mm:

• Lambda D=0.036 W/mk

• U-value (200 mm)= 0.175 W/m2K
• Euroclass – A1

Internal Insulation:

RockWool Superrock:

• Lambda D=0.035 W/mK
• U-value (200 mm)= 0.175 W/m2K
• Euroclass – A1

Internal board:

• OSB – 3
• Thickness – 12 mm

Internal Structural Walls
Thickness: 195 mm
Timber Framework:
Softwood board:

• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)
• Dimensions 195×70 mm

Joists System. Quantity: 1 Set

Joist’s Beams:

• Dimensions 95 x 195 mm (Softwood):
• Kiln dried (16%)
• Planned, calibrated
• Graduated (C16/C24)

Double Glued Rafter system.
Quantity: 1 Set

Rafters:

• Dimensions 70 x 390 mm (Softwood):
• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)

Purlins:

• Dimensions (boards 70×195 mm; 140×195 mm; 210×195 mm):
• Kiln dried (16 %)
• Planned, calibrated
• Graduated (C16/C24)
• Glue – D4 CompatibleInsulation for double rafters

RockWool Superrock :

• Lambda D=0.035 W/mk
• U-value (400 mm) = 0.0875 W/m2K
• Euroclass – A1

Full set of installation hardware.
