The frames are made from glue-laminated spruce beams. The frame consists of a bottom frame (100 x 160 mm), columns (140 x 140 mm), and a top frame (140 x 200 mm) and withstands 295 kg/m2 roof load.
The 1000 x 2200 mm walls are made of spruce wood. The light, golden-white spruce are ideal for Cubes’ construction designs.
Insulated full-panel wall
Wall frame 45 x 45 mm, the panel covered with 96 x 12 mm inside and outside 145 x 18 mm horizontal spruce cladding boards.
Decorative sunscreen wall
Wall frame 75 x 45 mm, horizontal sunscreen wall consists of 18 x 95 mm boards.
Wooden tempered glass wall
Wall frame 75 x 45 mm with full tempered glass window.
The roof panels are built with double rafters construction and covered with 18 x 145 mm finishing boards. This construction withstands 442 kg/m2. Cube buildings’ roofs are 2853 mm high and 1.310 (2.29%) slope. We use MIDA SELF KSK for the roof covering, its self-adhesive elastomeric bitumen membrane covering the entire surface. Installation of the rolled roofing is a quick, simple, and safe way to cover all Cube. All you must do is unroll, attach with nails, remove the protective film, and press.
Inside sauna: Sauna benches are made from deciduous wood. The Inner glass door is from tempered brown tinted glass. Doors size is 698 x 1855 mm, and the thickness of the tempered glass is 8 mm. The external door of the sauna is 819 x 2032 mm (from spruce) with large tempered glass windows and a lock.
The sauna room volume is 24 m3
|Inside area:||8.0 m2|
|Sauna area:||6.0 m2|
|Total height:||2853 mm|
|Wall height:||2200 mm|
|Floor thickness:||28 mm|
|Exterior Cladding:||18 mm|
|Interior Cladding:||12 mm|
|Wall thickness:||75 mm|
|External dimension:||2286 x 4286 mm|
|Door size:||817 x 2035 mm|
|Interior tinted glass door:||620 x 1800 mm|
|Window size:||1000 x 2200 mm|
- Garden cube frame from spruce;
- Insulated roof panels;
- Self-adhesive bitumen membrane for roof covering;
- 5 insulated full panel walls;
- 1 insulated full panel wall (for inside);
- 2 standard full panel walls (for inside);
- 3 wooden tempered glass walls;
- 1 insulated partition wall with glass sauna doors;
- 1 decorative sunscreen wall with tempered glass;
- Wooden door with tempered glass windows;
- Tongue and groove floor;
- Sauna benches from deciduous wood;
- Heat-resistant plates for the heater/stove;
- Two spaces inside: a sauna room and a changing room;
- Assembly instruction, drawings and product maintenance recommendations.
|Size of pallets (LxWxH:)||4.4 x 1.2 x 2.6m|
You can also find a suitable heater for your sauna in our product range:

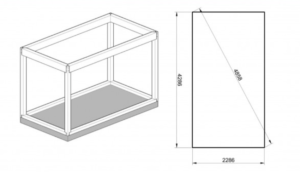

It is very important to have a proper base for your Cube. Therefore, we recommend following our sketches and consulting a qualified local builder or engineer. Making sure that the base for your Sauna fits the location is of utmost importance.
Due to an improper base, the structure may crack. If the product is unevenly seated, the geometric shape of the building may change, which can result in the door/windows twisting, and/or gaps. In the worst-case scenario, the product may even collapse.
- Before building the base, make sure you take into account the landscape and the ground conditions on which the Sauna will stand.
- The base under the product must be prepared specifically for the Sauna.
- The base must be homogeneous, tight, and level.
- Make sure that the properties of the base do not change over time. We recommend making the base out of concrete and waterproofing it before installation.
If you do not follow recommendations for building the base, the product will lose its warranty!
USING YOUR SAUNA AND PREPARING YOUR SAUNA FOR USE.
- If you have wood burning heater, make sure to remove the protective film of the heater chimney before heating.
- Check the Sauna before heating. No flammable objects must be left on or near the heater.
- Check that there is water in the water tank (if you use it).
- Ensure that the Sauna door is unlocked and easy to open before using it. If necessary, the sauna door must be adjusted by the customer.
- Do not mount any additional accessories or shelves above the heater.
- Turn the Sauna heater on.
- The thermometer should be located at head level in the Sauna. It should be further away from the heater, so it does not give a false reading.
- Wait for the Sauna to reach the required temperature (normally 80-90º C).
All users should be aware of the potential dangers and requirements prior to participation in the Sauna!
THINGS TO NOTE WHEN USING THE SAUNA
Enjoy the many health benefits of the relaxing heat of your Sauna. But remember: being inside the hot Sauna for long periods of time raises your body temperature, which may be dangerous, especially for those with a heart condition or other health risks. Generally, the recommended time inside a Sauna is from 10 to 15 minutes. After a period of heating, take a 5-minute break and then repeat.
- Familiarize yourself with the safety instructions and keep away from the heater when it is hot.
- Be very careful when moving in the Sauna, as the benches and floors may be slippery!
- The Sauna should not be used by pregnant women or very young children.
- Remove all jewelry before entering the hot Sauna.
Wood is a natural material and can change through time. Cracks of various sizes, structural or color changes are not defects – rather, they are features of the wood. Natural wood (not impregnated) becomes grayish after being left untouched for a while. Later it can turn
blue and get covered with mold.
- Impregnate and paint the wood to protect the product from the outside. We recommend inspecting Sauna every 6 months and evaluating the need for re-impregnation, and re-painting.
- When not in use, keep a bucket full of water in the Sauna during summer.
- The doors of the Sauna must be adjusted regularly.
- You should keep the sauna ventilation open all the time, to allow it time to dry and air out to avoid mold.
- To remove bench stains, use mild soapy water and a soft cotton cloth. This can also be used on the heater itself – just make sure it’s off and completely cool when you clean it.
- Don’t use harsh or abrasive chemicals on benches, as these can bleach and warp the wood, ruining the grain and turning it grey.
With these simple maintenance tips, your Sauna will stay inviting, fresh, and enjoyable!
