Description

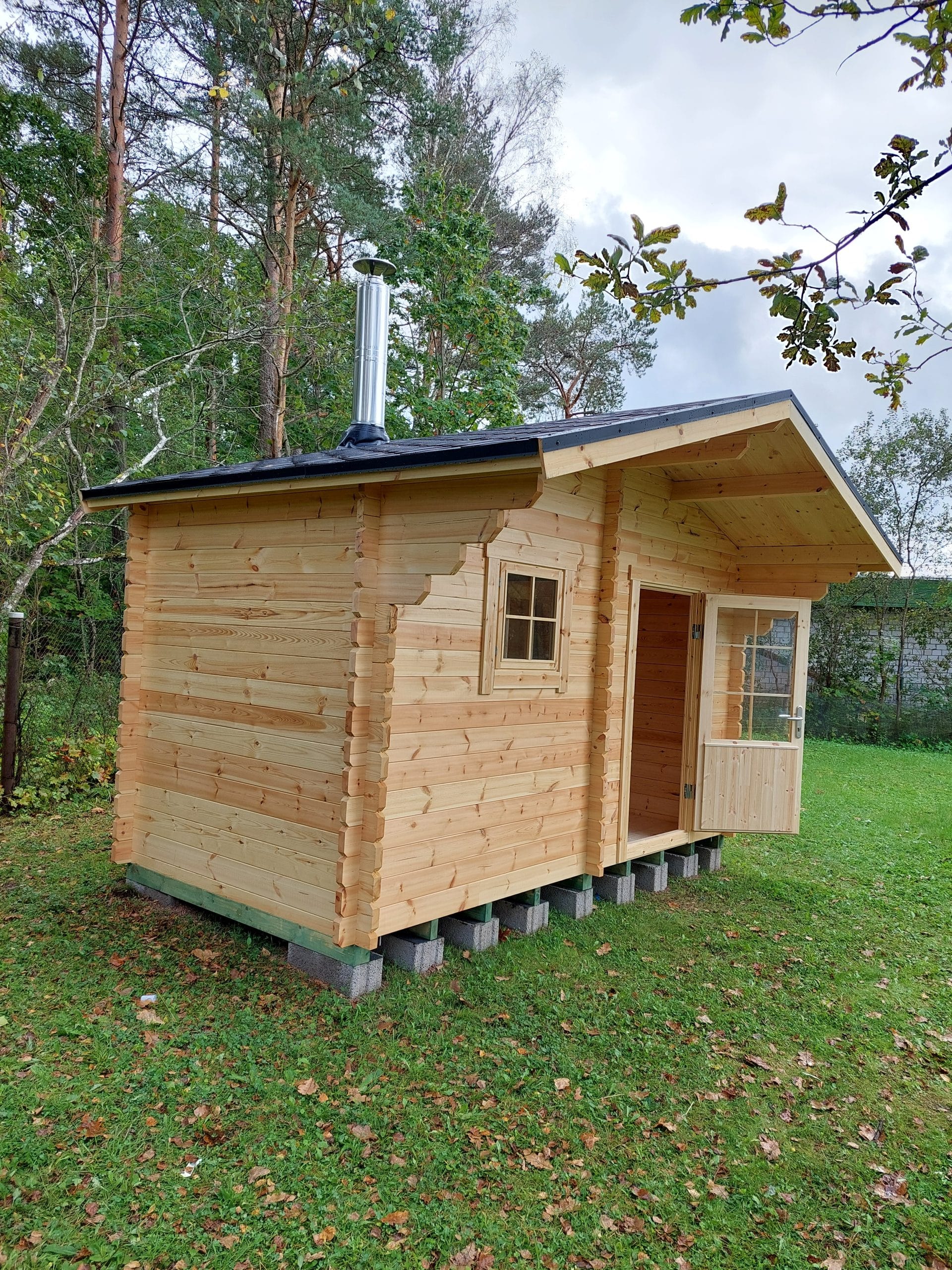

Lillevilla Sauna Kulovesi model features a separate dressing room and steam room. The floor area of this model is 7.6 square meters. The sauna is 3.8 meters wide and 2.0 meters deep. The ridge height is 2.9 meters, and the wall thickness is 44 mm.
Included in the delivery
The product package includes logs, doors, a window, floorboards, roof boards, fittings, nails, and screws. Threaded rods for the corners are also included. The floorboards are 21 mm thick.
Roofing material is not included. However, you can order Katepal Classic KL shingle roofing, Katepal TopTite 3 roll roofing (sealed joint roofing), or metal roofing from this page. Tile roofing is not recommended. The roofing material must be installed immediately after the building is assembled.
The benches are not included in the delivery, but you can order a bench package for the sauna from this page.
Note: The stove and chimney are not included in the delivery.
The cabin parts are pre-processed at the factory. However, since assembly is required, make sure you have common tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.
Surface Treatment
The building’s surface treatment must be carried out immediately after assembly, weather permitting. Use breathable surface treatment products specifically designed for log surfaces. Paints that create non-breathable plastic films must not be used.
Building permit information
Check the need for a building permit in advance with your local building authority. Drawings required for the building permit application can be downloaded from this page .
Technical specifications:
Floor area (m²): 7.6
Base dimensions (mm x mm): 3800 x 2000
Wall thickness (mm): 44
Ridge height (mm): 2915
Sidewall height (mm): 2225
Roof area (m²): 15
Roof dimensions (mm x mm): 4450 x 3340
Ridge length (mm): 3300
Roof section length (mm): 2266
Roof slope (degrees): 18
Roof boards (mm): 16
Floorboards (mm): 21
Window: Insulated safety glass CE 4/6/4 mm, Type A (640×640)
Opening direction: Outwards
Doors: Insulated safety glass CE 4/6/4 mm, Type C (897×1820)
Safety glass CE 4 mm, Type O3 (648×1772)
Roofing Material: Not included
Package Dimensions (mm) and Weight: 4600 x 850 x 1150 / 1325 kg
Product Code (SKU): 0144 38 20 10
Additionally available:
Eaves Flashing Package
30136 Eaves Flashing Package (+135,00 €)
Insulation Packages
9512 Floor Insulation Package (+252,00 €)
9511 Roof Insulation Package (+463,50 €)
Bench Package
9869 Bench Package – 1900 mm (+364,50 €)
Sauna Floor Drain
9878 Sauna Drain (+99,00 €)
Drawings for permit application
Surface treatment instructions
