Description

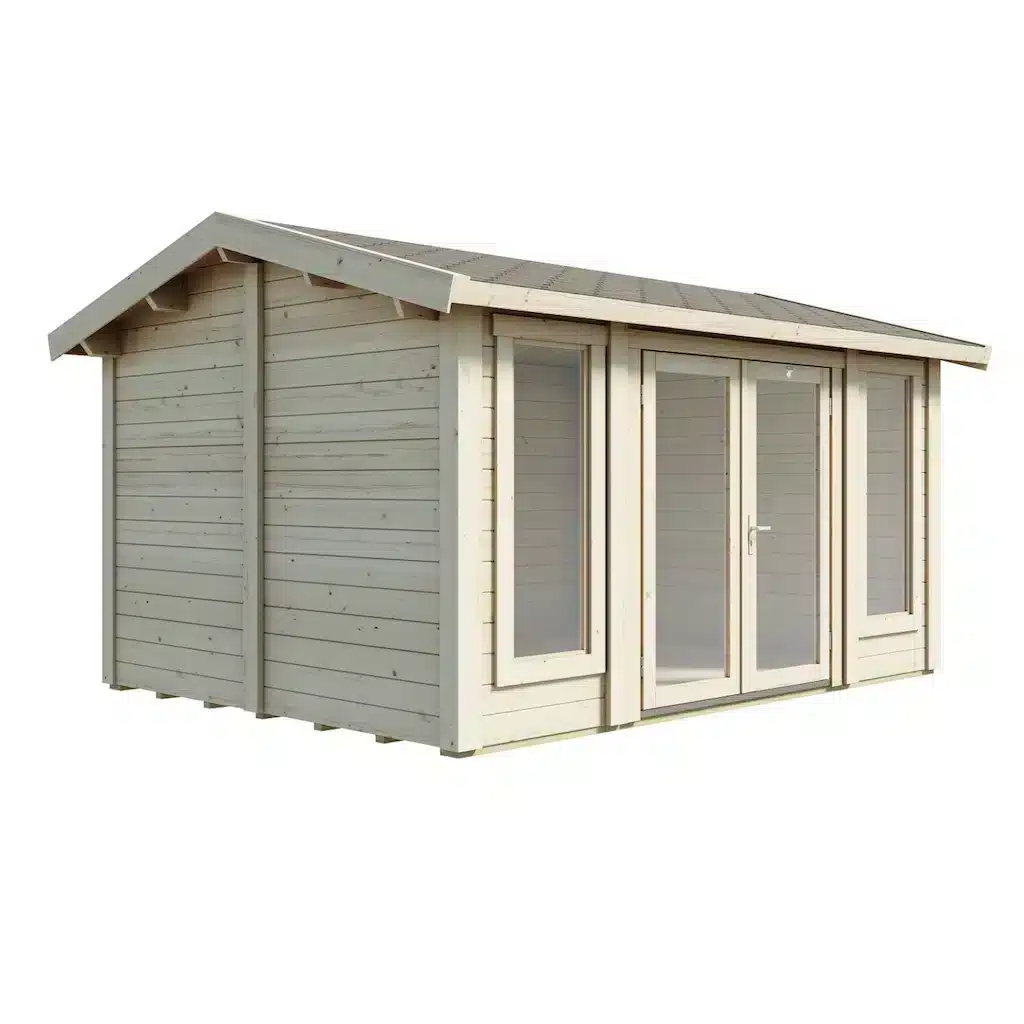

Lillevilla Ruokonen is a spacious and bright gable-roof garden building made from 44 mm thick logs. It’s an ideal spot to enjoy summer days or create a cozy atmosphere during autumn evenings. Thanks to its large windows, this model is especially suitable as an artist’s studio or a summer kitchen.

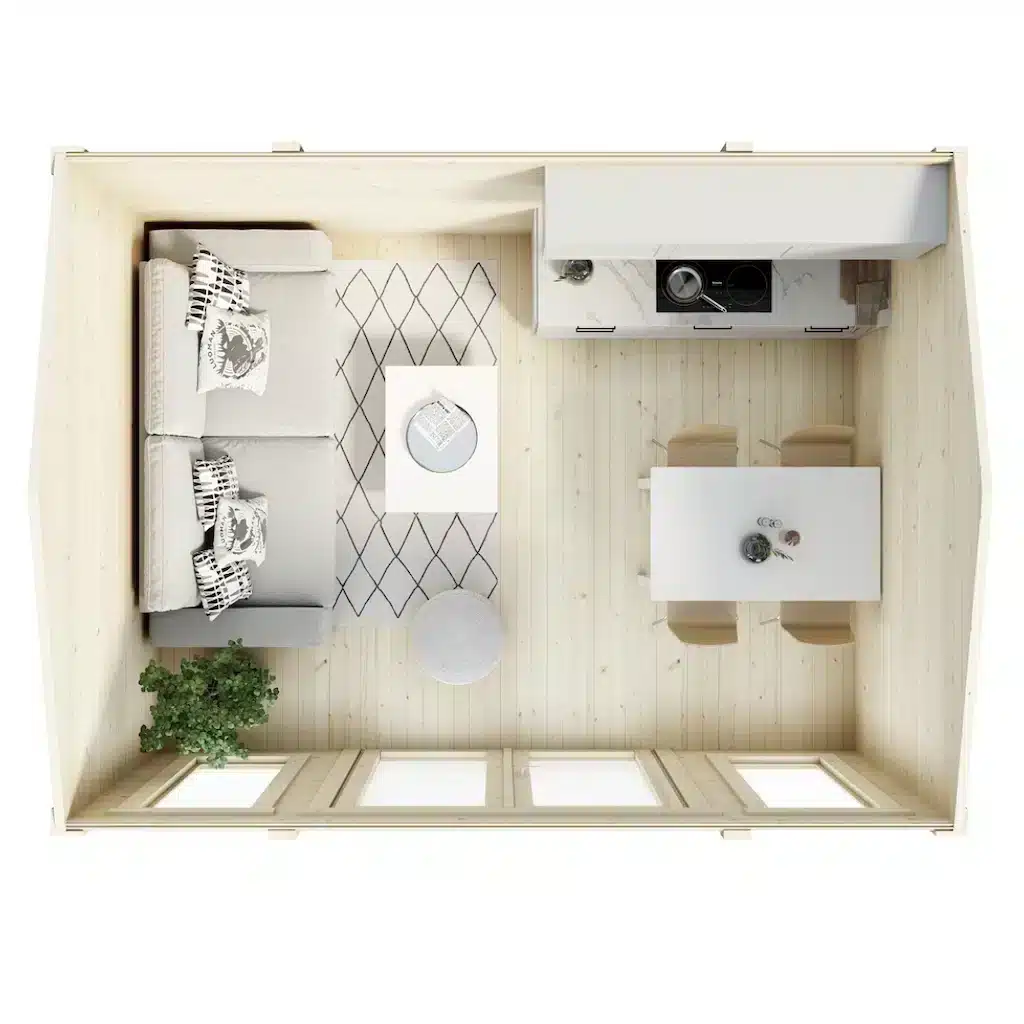

The floor area of this model is 12 m², with a width of 4 meters and a depth of 3 meters. The ridge height is 250 cm, and the roof area is 16.20 m².
Included in the Delivery
The product package includes logs, doors, windows, floorboards, roof boards, fittings, nails, and screws. The floorboards are 21 mm thick, and the logs are 44 mm thick with a double tongue-and-groove design, ensuring exceptional durability.
Roofing material is not included but can be ordered separately. Choose from shingle roofing or sealed joint roofing options. Tile roofing is not recommended, and the roofing material must be installed immediately after assembly.
The cabin parts are pre-processed at the factory. However, since assembly is required, ensure you have common tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.
Surface Treatment
The building’s surface treatment must be carried out immediately after assembly, weather permitting. Use breathable surface treatment products specifically designed for log surfaces. Paints that form non-breathable plastic films must not be used.
Building Permit Information
Check with your local building authority in advance regarding the need for a building permit. Drawings required for the application can be downloaded or requested from our customer service.
Technical specifications:
Floor area (m²): 12
Base dimensions (mm x mm): 4000 x 3000
Wall thickness (mm): 44
Ridge height (mm): 2500
Roof area (m²): 16.2
Ridge length (mm): 4500
Roof section length (mm): 1796
Roof slope (degrees): 16.00
Roof boards (mm): 16
Floorboards (mm): 21
Windows: Insulated safety glass CE 4/6/4 mm, Type R7 (558×1496), 2 pcs (fixed)
Doors: Insulated safety glass CE 4/9/4 mm, Type D6 (1694×1805)
Roofing material: Not included
Package dimensions and weight: 4550 x 770 x 1150 mm / 1060 kg
Product Code (SKU): 0144 40 30 10
Additionally available:
Roof materials
30123 Shingle roofing package (+364.50 €)
30129 Sealed seam roofing package (+319.50 €)
Eaves Flashing Package
30136 Eaves Flashing Package (+135.00 €)
Insulation Packages
30101 Floor Insulation Package (+472.50 €)
30106 Roof Insulation Package (+855.00 €)
