Sauna glass wall VETRO S47

Sauna glass wall with fixed panel on handle side and hinge side.
The product is suitable for sauna space division. The door does not have any frames, the hinges are mounted directly to the side panel on the hinge side. The side panels add light and the feeling of spaciousness to the space.

1,290.00not inc. VAT

Pay later, in 3 parts – 0% interest, 0€ extra fees.

Learn more
Modena logo

Description

Sauna glass wall with fixed panel on handle side and hinge side.
The product is suitable for sauna space division. The door does not have any frames, the hinges are mounted directly to the side panel on the hinge side. The side panels add light and the feeling of spaciousness to the space.

The hinges have a turning range of 90 degrees in both directions and are equipped with adjustable centring that aims to return the door into its opened and closed positions.

Upper windows or side glasses profiles are manufactured of stainless steel. Profiles are coated according to frame color selection and made accurately according to measures (no need to cut on-site). The profiles are additionally equipped with link- and corner caps for a perfected finish and easy adjustment.





INSTALLATION

The door is mounted with hinges fastened directly to the hinge-side glass and by fastening the hinges tightly to the glass. The upper windows are mounted with stainless steel profiles on the top, to which the glass is glued. The steel-profiles are precision-cut to correct lengths and provided with corner- and link caps for perfecting the finish as well as allowing for some room of adjustment. The upper glass is secured with the help of glass clamps. All side panels are mounted with stainless steel profiles framing the outer edges of the glasses, to which the glasses are glued. When mounting full high side-panels, glass clamps are used on the bottom. Please note that the hinges should be re-tightened after approximately one week of use, due to the heat affecting the placing of the hinge the few first times of use. The re-tightening is done by tightening the hex-screw on the glass-side as tight as possible. The responsibility of doing the tightening is always the end users.



FRAME COLOUR

Door hinges and the fittings of the side window are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted. The handle is by choice either chrome plated, brass, black painted brass alloy or unfinished alder. Glass mounting profiles are made of stainless steel. Profile colour matches the selected surface treatment option.



GLASS COLOUR

The product is manufactured of 8mm thick tempered safety panel (EN 12150). Clear and smoke are smooth surfaced and transparent panels.

  • Transparent
  • Grey
  • Brown
  • Black



PRODUCT SIZE

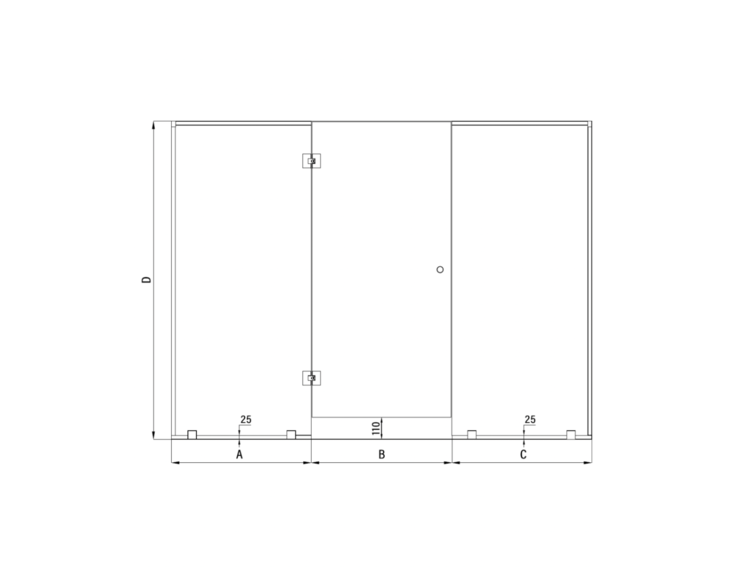

The size of the shower door can be selected from the standard dimensions(700/800/900 x 2000) or it can be manufactured by special dimensions; the side panels are always manufactured based on special dimensions. When selecting the size of the door, the width is the width of the installation opening and the height is the height of the panel pane. When dimensioning the height of the installation opening of the door, a 5mm reserve is automatically left at the top edge of the panel and a 110mm reserve is left at the bottom edge. When selecting the side panel, the width and the height are the width and the height of the installation opening. The installation and adjustment ranges are included automatically in the dimensioning of the panel panes of the side panels. If the size of the door exceeds 1.7m2 an additional hinge is necessary to provide additional support.



HANDLE OPTIONS

The round metal handle and the short metal handle are manufactured from chromed brass alloy. The short wooden handle is unfinished alder. Out of handle options, the round metal handle and the short wooden handle are also well-suited for use on a sauna door. If the size of the door exceeds 1.7m2 , please select the handle option with additional hinge.



  • Round metal knob
  • Round metal handle + additional hinge
  • Vetro 639 short metal handle
  • Short metal handle + additional hinge
  • Long metal handle
  • Long metal handle + additional hinge
  • Short wooden handle
  • Short wooden handle + additional hinge
  • Long wooden handle
  • Long wooden handle + additional hinge
  • Without handle
  • Without handle + additional hinge

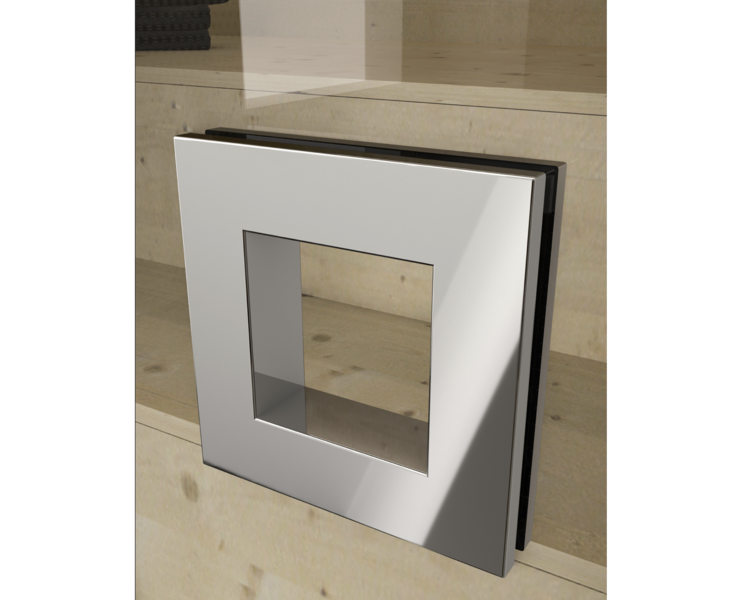

  • Square handle
  • Square handle + additional hinge
  • Polished hole
  • Polished hole + additional hinge
  • Round handle
  • Round handle + additional hinge
  • Hexagon handle
  • Hexagon handle + additional hinge



20 year warranty
