Description
Product code: NETMINIKI
GTIN Code: 6430041121503

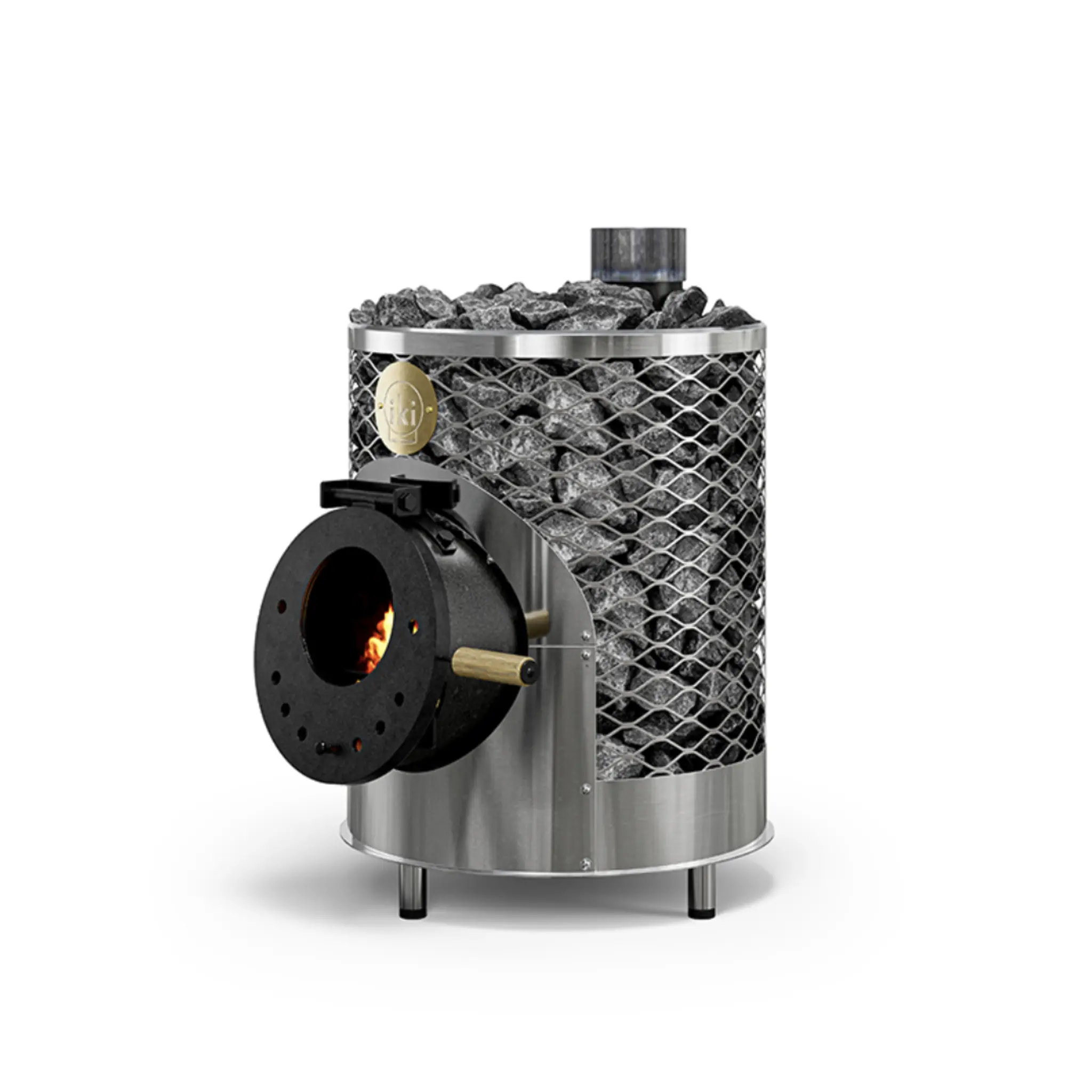

Mini IKI is the smallest model in the IKI wood-burning stove range, designed for saunas sized 5–12 cubic meters. Despite its compact size, it holds an impressive 120 kg of stones. The firebox is extended with a welded heat circulation pipe, which enables fast heating of the large stone mass. Mini IKI is a highly efficient heater for small saunas and ensures warmth even on the lower benches thanks to its substantial stone volume. Draft control is effortless with the adjustment knob on the door. The stove is delivered with a base, which is permanently bolted to the unit.
Product dimensions:
- Height (mm): 580
- Width (mm): 480
- Depth (mm): 480
- Diameter (mm): 480
- Weight (kg): 45
Product features:
- Brand: IKI Kiuas
- Color: Steel
- Material: Steel
- Stove type: Cage-style heater
- Water tank included: No
- Firebox diameter: 27 cm
- Firebox length: 50 cm
- The stove can be connected to the flue using a straight, 90°, or 45° pipe
- Door: Glass door with wooden handle (reversible hinge)
- Maximum stone capacity (kg): 120
Installation and usage:
- Minimum sauna volume (m³): 5
- Maximum sauna volume (m³): 12
Mini IKI safety distances to combustible materials:
- Sides: 10 cm
- Rear: 10 cm
- Top: 100 cm
Note: From an uninsulated/exposed chimney pipe: 1 m upward and 50 cm to the sides
The stove can be connected to the flue with a straight, 45°, or 90° pipe .
The stove can also be equipped with a Plus extension, a stone basket placed on top of the stove
Note: The thermal mass of an IKI stove is stored in the large volume of stones, so the presence of glass or stone surfaces in the sauna has minimal impact on heating. However, it is recommended to oversize the stove if the sauna has extensive glass or stone surfaces and is at the upper end of the recommended volume range.
NB: Stones are not included in the standard delivery.
