Description

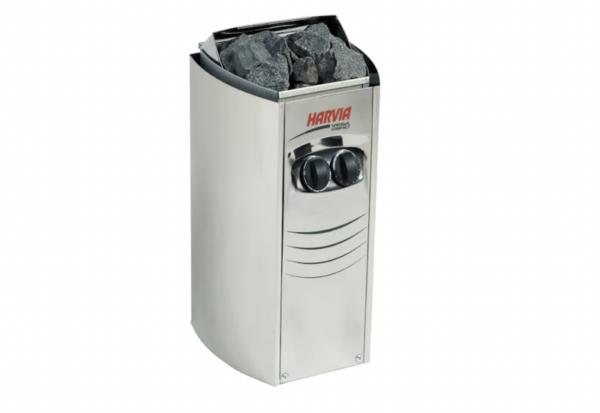

Harvia Vega Compact is a powerful package for a small sauna. Vega Compact is easy to use, because the operating switches are placed ergonomically in the upper part of the heater. The heater can be mounted very low on the sauna wall so it provides heat for the lower benches as well. Vega Compact is easy to install.

Product information:

• Product code: 8260835
• Output: 3,5 kW
• Sauna room min – max size: 2 – 4,5 m3
• Measurements (HxWxD: 505 x 280 x 295 mm
• Weight: 7 kg
• Stone capacity max: 12 kg
• Minimum safety distances (ceiling / sides):  900 mm / 20 mm
• Supply voltage, phase : 400 V 2N / 230 V 1N
• Fuse: A 2×10 / 1×16
• Connection cable, mm2: 4 x 1,5 / 3 x 2,5
• Control unit: Built-in
