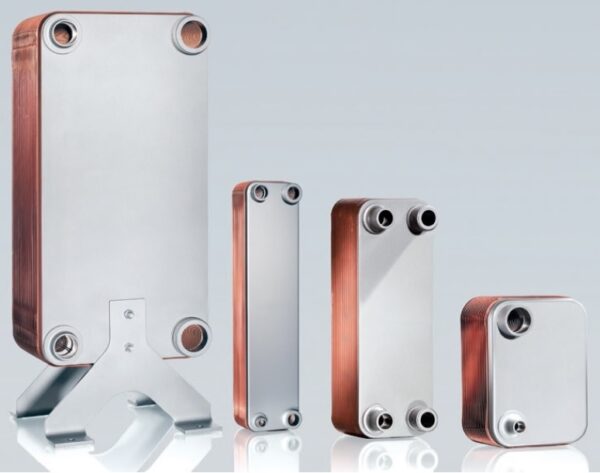

Brazed plate heat exchangers GBS Series

A brazed all-rounder that can be used for applications up to 31 bar and +200°C.

Applications:
⊲ Heating/service-water systems
⊲ Floor heating
⊲ Coolers and condensers
⊲ Economizer
⊲ Refrigerant evaporator
⊲ Oil coolers and many other industrial applications

50.00not inc. VAT

Pay later, in 3 parts – 0% interest, 0€ extra fees.

Learn more
Modena logo

Description

As a global technology leader in the design and manufacturing of plate heat exchangers, our product range is one of the most extensive on the market. In addition to gasketed, brazed, and fully-welded plate heat exchangers, our product spectrum also includes a range of unique process-optimized models with special functions. This makes us an absolute specialist in our field, offering off-the-shelf as well as tailor-made solutions for your individual applications.

Our brazed plate heat exchangers offer customized solutions for a wide variety of applications. Thanks to the automated production and compact design of our brazed plate heat exchanger series, we can put together an individual heat exchanger for you within a very short time. The latest technology and decades of experience of successful applications guarantee the highest quality, cost efficiency, and reliability.

If you attach great importance to flexible sizing and sophisticated technology, then the GBS plate heat exchangers are your choice. These brazed allrounders are ideally suited for applications of any size – pressure-resistant up to 40 bar at -196°C up to +200°C. This brings quality, economic efficiency, and excellent thermal performance to your operations.

Heat Exchangers of the GBS-Series are the solid allrounders among all brazed plate heat exchangers from Kelvion. The latest technology and decades of experience of successful applications guarantee the highest quality, cost efficiency, and reliability. Equipped with proven technical features like Safety ChamberTM, Delta InjectionTM, and Full-Flow SystemTM the Units are ideal for applications of all sizes with max. 200°C / 392°F and up to 40 bar / 580 psi.The product range also offers the widest variety and flexibility in terms of sizes, different connections, flow arrangements, and accessories. Thus heat exchangers of the GBS series always serve as the right solution for your operating conditions.

Your benefits:

⊲ Highest flexibility
⊲ Compact design
⊲ Optimal corrugation design
⊲ Wide range of applications
⊲ Solid construction
⊲ Precision-made heat exchanger



Example pricelist for different models: (colored X means this model has isolation)

KW 90-33/30-60 *C  PRICE KW 70-20/10-58 *C  PRICE KW 90-33/30-35 *C PRICE
20 / 20 kPa 20 / 20 kPa 20 / 20 kPa
Heating/vent Dhw (1-step or 2-step) Floorheating
50 GBE 240H-30 (E3,E4) X
GBS 240H-30 (EH1,EH2)B
ISOL PUR 240-8/30
250.98
315.12
73,82
100 GBS 525M-DS-15/15 (XF1,XF2,XF3,XF4)
ISOL PUR 525-30/40 500-34/44 550-44/60
563,34
94,89
20 GBS 100M-30R (CG1,CG2) B
ISOL PUR 100-24/40
185,76
57,99
100 GBE 240H-40 (E3,E4) X
GBS 240H-40 (EH1,EH2) B
ISOL PUR 240-34/50
281.23
381.03
89,60
150 GBS 525M-DS-25/25 (XF1,XF2,XF3,XF4)
ISOL PUR 525-44/60 500-50/70 550-70/80
767,19
102,80
40 GBE 400H-60 (F3,F4) X 397,21
150 GBE 500H-40 (F3,F4) X
GBS 500H-40 (FGL1,FGL2) B
ISOL PUR 525-30/40 500-34/44 550-44/60
401.58
482.51
94,89
200 GBS 525L-DS-31/31 (XF1,XF2,XF3,XF4)
ISOL PUR 525-70/90 500-80/100 550-90/140
889,5
108,07
60 GBE 400H-90 (F3,F4) X 531,72
200 GBE 500H-60 (F3,F4) X
GBS 500H-60 (FGL1,FGL2) B
ISOL PUR 525-44/60 500-50/70 550-70/80
524.58
645.22
102,80
250 GBS 525L-DS-41/41 (XF1,XF2,XF3,XF4)
ISOL PUR 525-70/90 500-80/100 550-90/140
1093,35
108,07
80 GBS 757L-30 (XG1,XG2) X 1056,73
250 GBE 500H-70 (F3,F4) X
GBS 500H-70 (FGL1,FGL2) B
ISOL PUR 525-44/60 500-50/70 550-70/80
568.08
726.57
102,80
300 GBS 525L-DS-45/45 (XF1,XF2,XF3,XF4)
ISOL PUR 525-70/90 500-80/100 550-90/140
1174,89
108,07
100 GBS 757L-40 (XG1,XG2) X 1240,70
300 GBE 500H-90 (F3,F4) X
GBS 500H-90 (FGL1,FGL2) B
ISOL PUR 525-70/90 500-80/100 550-90/140
709.09
889.28
108,07
350 GBS 700L-DS-29/29 (GLZ1,GLZ2,GLZ3,GLZ4) B
ISOL PUR 757-44/50 700-44/60
1531,07
142,33
350 GBE 500H-100 (F3,F4) X
GBS 500H-100 (FGL1,FGL2) B
ISOL PUR 525-70/90 500-80/100 550-90/140
770.59
970.64
108,07
400 GBS 700L-DS-37/37 (GLZ1,GLZ2,GLZ3,GLZ4) B
ISOL PUR 757-60/90 700-70/100
1806,45
163,42
400 GBS 700M-50 (GLZ1,GLZ2) B
ISOL PUR 757-44/50 700-44/60
GBS 757H-50 (XG1,XG2) X
1247.74
142,33
1424.66
500 GBS 700L-DS-45/45 (GLZ1,GLZ2,GLZ3,GLZ4) B
ISOL PUR 757-60/90 700-70/100
2081,82
163,42
450 GBS 700M-50 (GLZ1,GLZ2) B
ISOL PUR 757-44/50 700-44/60
GBS 757H-60 (XG1,XG2) X
1247.74
142,33
1608.63
600 GBS 700L-DS-51/51 (GLZ1,GLZ2,GLZ3,GLZ4) B
ISOL PUR 757-60/90 700-70/100
2288,34
163,42
500 GBS 700M-60 (GLZ1,GLZ2) B
ISOL PUR 757-44/50 700-44/60
GBS 757H-60 (XG1,XG2) X
1419.85
142,33
1608.63
600 GBS 700M-70 (GLZ1,GLZ2) B
ISOL PUR 757-60/90 700-70/100
GBS 757H-70 (XG1,XG2) X
1591.95
163,42
1792.59
700 GBS 700M-90 (GLZ1,GLZ2) B
ISOL PUR 757-60/90 700-70/100
GBS 757H-90 (XG1,XG2) X
1936.17
163,42
2160.52
800 GBS 700M-100 (GLZ1,GLZ2) B
ISOL PUR 757-60/90 700-70/100
GBS 757H-100 (XG1,XG2) X
2108.27
163,42
2344.49

We need the following information to select your optimum heat exchanger:

⊲ Required temperature range
⊲ Flow rates or required heat load
⊲ Maximal permitted pressure drop
⊲ Required working conditions

Reviews

There are no reviews yet.

Be the first to review “Brazed plate heat exchangers GBS Series”
