Description

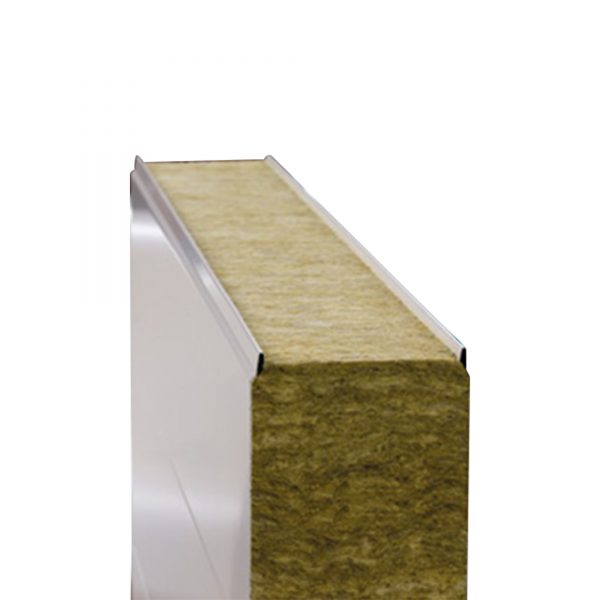

Arpanel has a wide range of Sandwich panels with Mineral wool (MW), Polyurethane (PIR/PUR), and polystyrene (EPS). The panel system is primarily for external use of wall and roofing constructions but can also be used as an interior material. The wide range of different profiles and colors increases the various possibilities for a very differentiated appearance.
• Mineral wool core, A2-s1, d0
• High fire resistance EI240
• Excellent thermal and sound insulation
• Lengths: 910 – 12,000 mm
• Covering width: 1150, 1100, 1000 mm
• Thicknesses: 100 – 300 mm
• Intrusion protection according to protection class 2
• Quick deliveries
• Technical support during the entire construction period
| Surface material | Steel S280–S320 |
| Insulation material: | Mineral Wool (MW) |
| Surface coating: | PE and PVDF as standard. Karat and other special coatings available as custom orders. |
| Colour: | RAL-colours (see product brochure) |
| Pattern: | Smooth surface Shadow groove 150, 200, 600 Profiling S50 Microprofiling M10, M15 Perforated interior/exterior |
| Covering width: | 1150, 1100, 1000 mm |
| Thickness (mm) | Uc value (W/m2K) | Weight (kg/m2) | Fire Resistance |
| 100 | 0,38 | ~20 | EI120 |
| 120 | 0,31 | ~22 | EI120 |
| 150 | 0,26 | ~25 | EI120 |
| 175 | 0,22 | ~28 | EI120 |
| 200 | 0,20 | ~31 | EI120 |
| 240 | 0,16 | ~35 | EI240 |
| 300 | 0,13 | ~41 | EI240 |
Warranty MW
Arpanel provides an object-specific warranty for its sandwich panels based on the local conditions and selected product properties for the object.
