Description
A Stunning Guesthouse for Your Garden

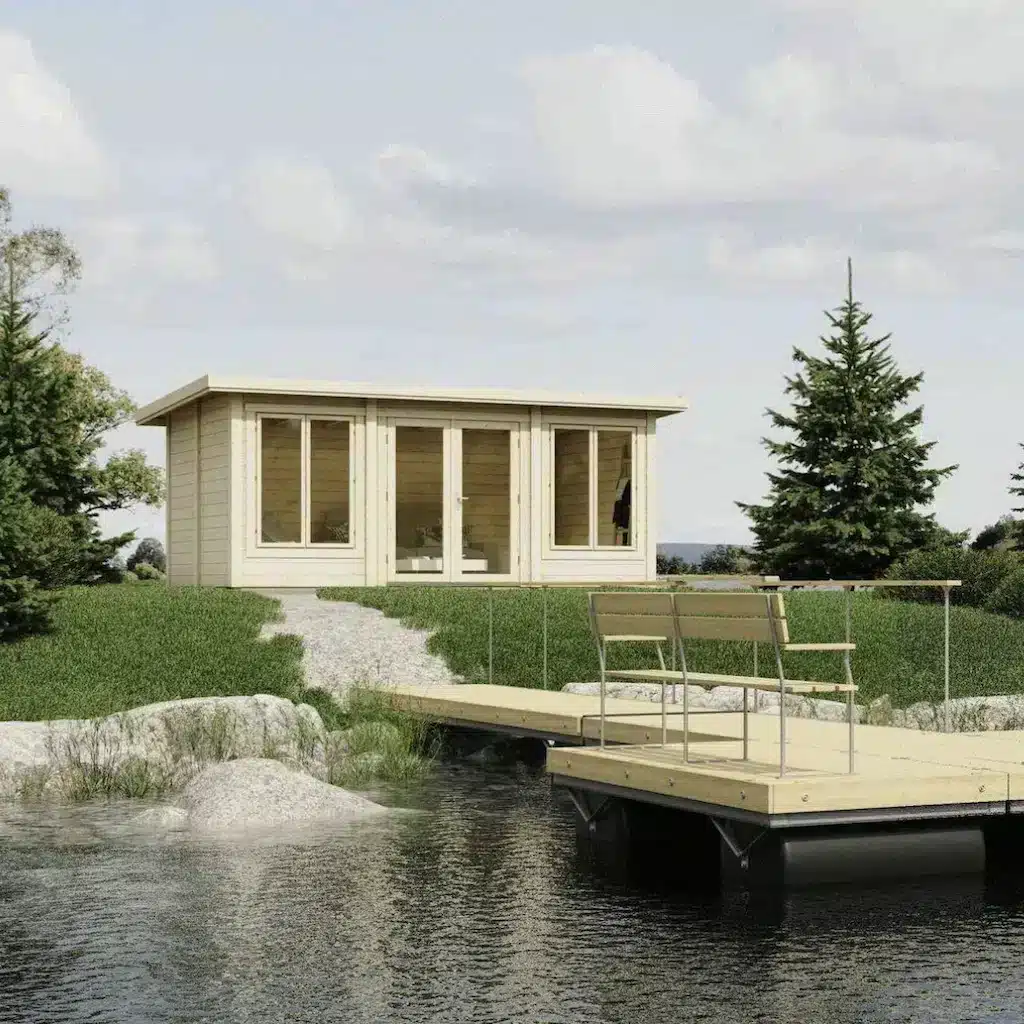

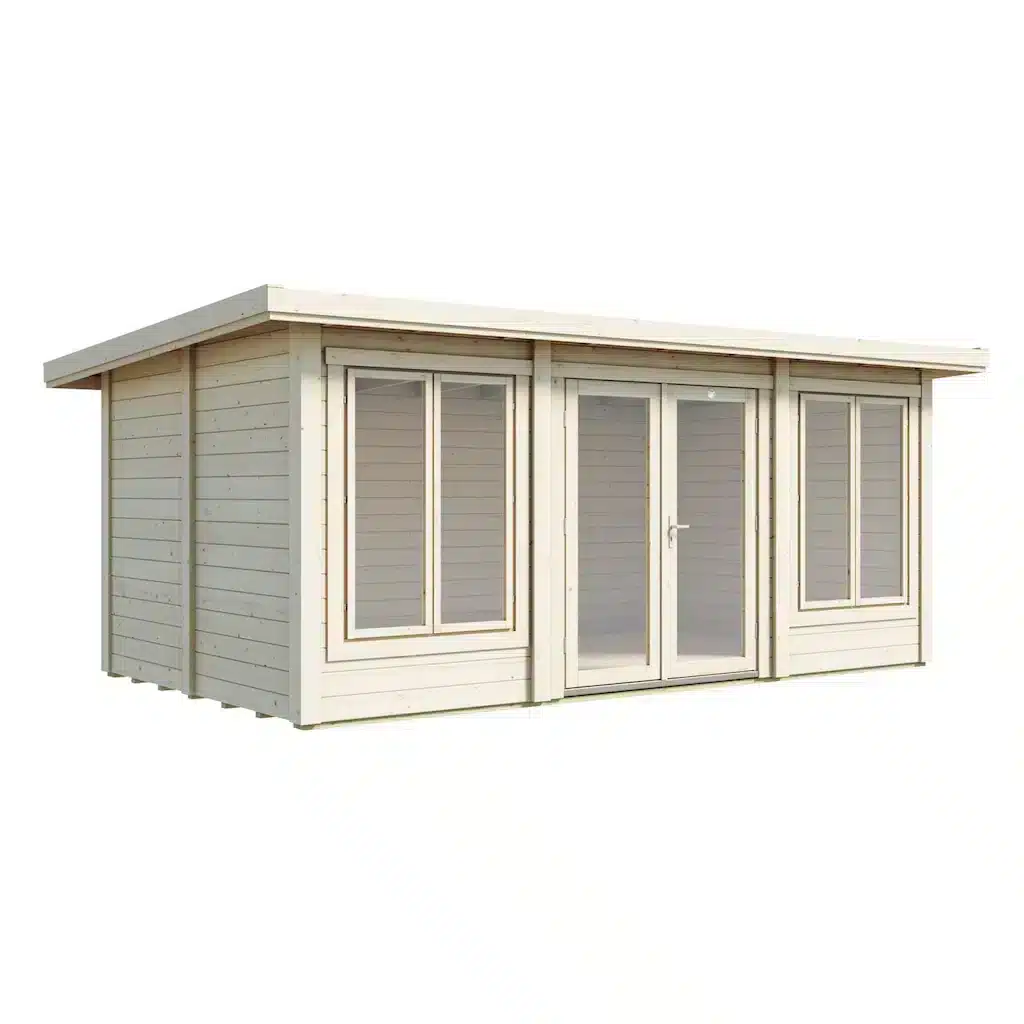

The Lillevilla Pielinen is a spacious and bright flat-roofed garden building crafted from 44 mm thick lightweight logs. This model features centrally placed double doors flanked by two large windows, creating an inviting atmosphere. Perfect for enjoying summer days or cozy autumn evenings! Thanks to its large windows, this model is ideal as an artist’s studio or a summer kitchen.
Key Dimensions of the Guesthouse
Floor Area: 15.6 m²
Dimensions (W x D): 5200 x 3000 mm
Ridge Height: 2450 mm
Roof Area: 19.1 m²
Roof Slope: 3.00°
The 21 mm thick floorboards and 44 mm thick double tongue-and-groove wall logs ensure exceptional durability. This model uses a “city corner” design where wall logs are attached to corner posts. All doors and windows feature CE-approved insulated safety glass.
Included in the Delivery
The product package includes logs, doors, windows, floorboards, roof boards, fittings, nails, and screws. Roofing material is not included but can be ordered separately. Choose from Katepal TopTite 3 roll roofing. Tile or shingle roofing is not recommended, and roofing material must be installed immediately after assembly.
The cabin parts are pre-processed at the factory, but assembly requires tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.
Surface Treatment
The building’s surface treatment must be completed immediately after assembly, weather permitting. Use breathable surface treatment products designed for log surfaces. Paints that form non-breathable plastic films should not be used.
Building Permit Information
Check with your local building authority to determine if a building permit is required. Drawings for the application can be downloaded from this page or requested from customer service.
Technical specifications:
Floor Area: 15.6 m²
Dimensions (mm): 5200 x 3000
Wall Thickness: 44 mm
Ridge Height: 2450 mm
Roof Area: 19.1 m²
Roof Dimensions: 5600 x 3390 mm
Roof Slope: 3.00°
Roof Boards: 16 mm
Floorboards: 21 mm
Windows: Insulated safety glass CE 4/6/4 mm, Type S (1187 x 1550), 2 pcs (outward-opening)
Door: Insulated safety glass CE 4/9/4 mm, Type D19 (1694 x 1960)
Package Dimensions and Weight: 5250 x 880 x 1150 mm / 1258 kg
Additionally available:
Roofing Material
30128 Sealed Seam Roofing Package (+400.50 €)
Eaves Flashing Package
30136 Eaves Flashing Package (+135.00 €)
Insulation Packages
30102 Floor Insulation Package (+544.50 €)
30112 Roof Insulation Package (+909.00 €)
Elevation Package
9459 2 Log Elevations (+405.00 €)
Surface treatment instructions
Insulation package instructions
