Name: Insulated Modern Cabin Verno 7.74 × 5.34 m | Factory Sale
SKU: WOODENME-VERNO
Price: 13491.23 EUR
Availability: InStock

Insulated Modern Cabin Verno 7.74 × 5.34 m

0.0

Discover the Insulated Modern Cabin Verno – a Scandinavian-inspired home combining modern design, energy efficiency, and comfort. With 2 bedrooms, a versatile room, bright open living space, large double-glazed windows, and a covered terrace, it’s perfect for year-round living or retreats.

€13,491.23€14,840.35

not inc. VAT.

Amount

How to order?

Step 1 Select a product.

Step 2 Add to quote.

Step 3 Fill the form.

Step 4 Send a request.

Step 5 Answer within 24 hours.

Insulated Modern Cabin Verno blends Scandinavian design with smart functionality: a fully insulated envelope (44 mm solid log + 100 mm insulation + vapor barrier + 25 mm OSB + ventilated cavity + 19 mm vertical timber cladding), a low-slope asymmetrical roof (~8° per side) finished in shingles or EPDM, and large Premium Plus double-glazed windows for abundant daylight. Inside, the bright plan includes a living room of 18.6 m², a bedroom of 9.2 m², a versatile room of 5.4 m², and a utility space of 2.2 m², plus a covered outdoor terrace of 11.0 m²—ideal for year-round comfort. With side wall height at 2.65 m and ridge at 3.18 m, the cabin delivers modern aesthetics, solid build quality in certified Nordic spruce, and dependable energy performance (U-values: walls ~0.30–0.35, roof ~0.23–0.28, floor ~0.30–0.35).

Category	Specification
Dimensions
External dimensions (width × length)	7.74 × 5.34 m
Internal area	35.4 m² + 11.0 m² terrace (4 rooms + terrace)
Number of rooms	3 + Utility 2.2 m²
Room layout	Living room 18.6 m²; Room 9.2 m²; Room 5.4 m²; Utility 2.2 m²; Terrace 11.0 m²
Heights & Roof
Side wall height	2.30 m
Ridge height	3.2 m
Roof pitch (per side)	8°
Roof area	59 m²
Roof boards	19 mm tongue-and-groove
Thermal Build-Ups
Wall build-up (inside → outside)	44 mm solid log → 100 mm insulation → vapor barrier → 25 mm OSB board → 25 mm ventilated cavity → breathable membrane → 19 mm vertical timber cladding
Floor build-up	19 mm tongue-and-groove boards → structural joists → ~100 mm insulation (Rockwool or EPS) → vapor/wind barrier (on concrete: plastic membrane, bearers, insulation)

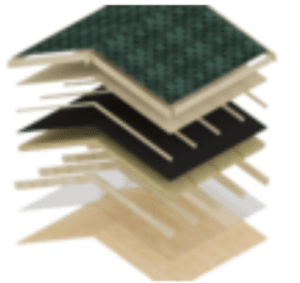

Roof build-up	Roof finish (shingles or EPDM) → battens & underlay → breathable membrane → ~100 mm insulation → 19 mm tongue-and-groove roof boards
Indicative U-values	Walls ~0.30–0.35 W/m²K; Roof ~0.23–0.28 W/m²K; Floor ~0.30–0.35 W/m²K
Openings & Materials
Doors	2 internal wooden doors 850×1980 mm; 1 external glazed door 1600×1980 mm; 1 external glazed door 850×1980 mm
Windows	2 × 1700×1980 mm; 1 × 1300×1430 mm; 1 × 700×1430 mm; 1 × 850×1980 mm; 1 × transom 1500×390 mm
Glazing	Premium double-glazed windows and doors
Material	Certified Nordic spruce
Other Data
External wall surface	~57 m²
