Description

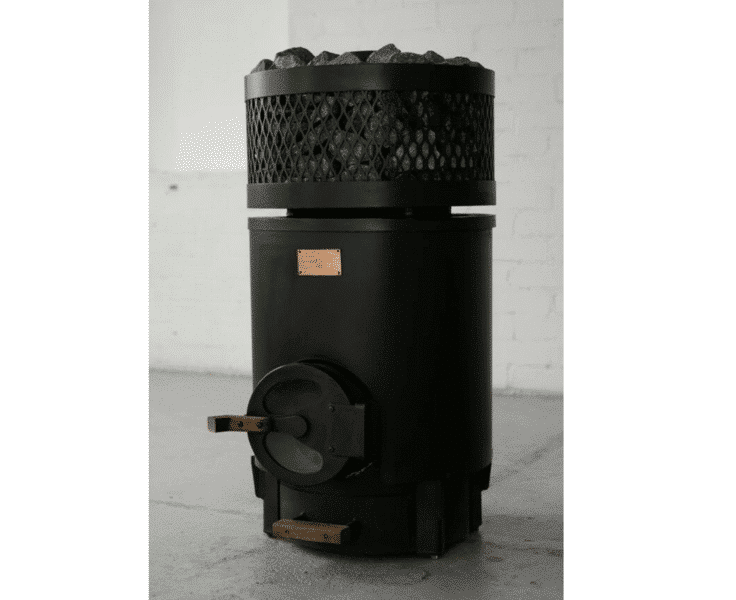

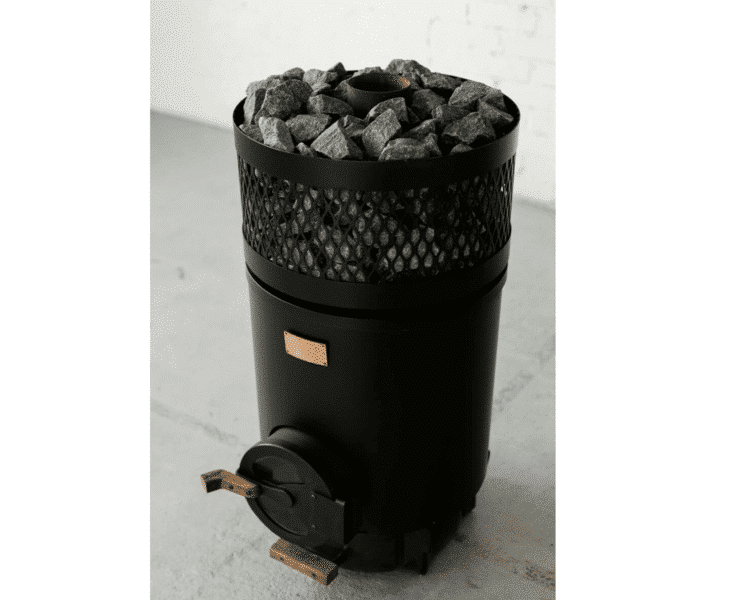

COMPACT SAUNA STOVE WITH DISTINCT DESIGN
The Juup Iivari Punos is structurally very similar to its predecessor, the Juup Original, but it is also suitable for smaller sauna rooms (9–18m³). As its predecessor, Iivari Punos offers versatile löylys, is robust and will serve for decades.
Juup Iivari Punos is part of the smaller Iivari line, and is fitted with a larger stone cradle compared to the base model Juup Iivari. The stone cradle fits approx. 85 kg of sauna stones, depending on the size and material of the stones. This way Punos offers longer löylys and stores heat better than the base model Iivari, but the heating time is naturally a bit longer.

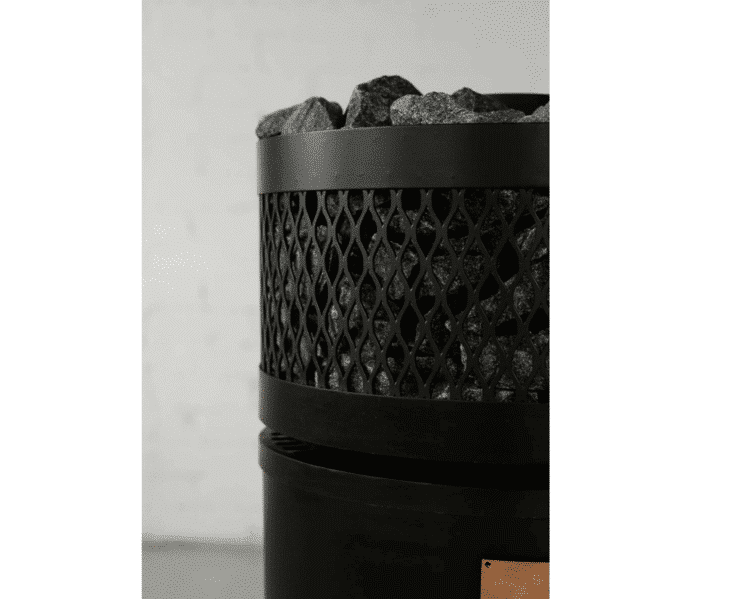

The upper part of the stove is a mesh, allowing you to pour and throw löyly onto the edges of the stone compartment as well. The mesh makes Punos stand out visually from other Juup sauna stoves.
Thanks to its robust and durable construction, the stove carries a 10-year warranty in home use.

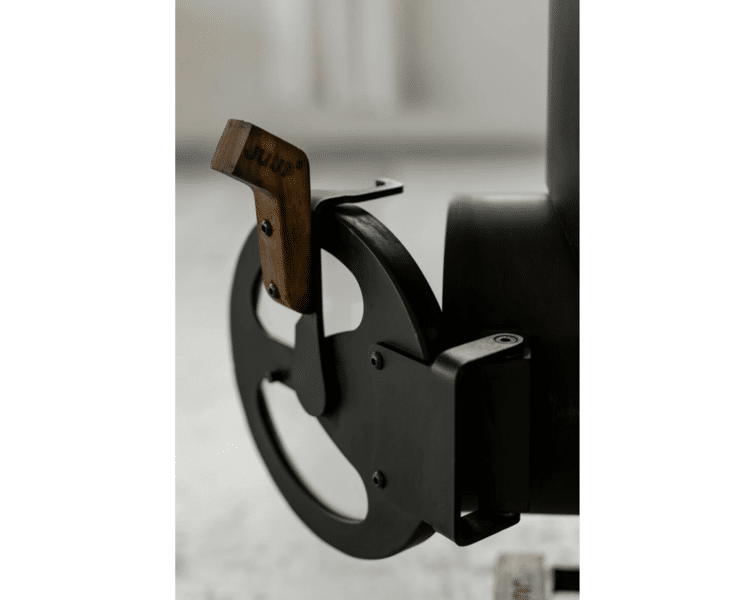

In Iivari stoves, there is a large glass door as standard. Juup Iivari Punos can be ordered with either rear or vertical smoke flue. The walnut handles shown in the pictures are available at an additional cost.
Juup Iivari Punos is the next generation of Juup Original, and our second model in the smaller Iivari line. Juup Iivari Punos is very similar in structure to its predecessor, but it is better suited for smaller sauna rooms. The design of Iivari Punos (Plait) influences its name, as it features a plait-like mesh, giving the sauna stove distinct visual looks. Iivari Punos offers you versatile löylys, and will serve you for decades.
Juup Iivari stove is a Finnish handicraft
A Finnish sauna innovation designed, developed and built by sauna enthusiasts. Already in three generations.
The easy-to-use and CE-marked stove heats up quickly, using less wood than traditional wood-burning stoves.
An efficient stove produces less emissions and studies* show that the Juup Iivari sauna stove’s carbon monoxide emissions are only 0.15% **, one of the lowest values on the market.
The efficiency of the Juup Iivari stove is over 68 % and is suitable for 9 m³ and larger saunas.
Ab Juup Oy has been granted the Avainlippu certification. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs in Finland.
WARRANTY
The heater body and fireplace are constructed of 3 mm carbon steel and the fireplace has only one weld seam. This allows the stove to last from one generation to the next. The original stoves, built by Gösta Juup in the 1950s, are still in use.
Thanks to its solid and durable construction, we grant the stove a 10-year warranty in home use.
TECHNICAL SPECIFICATIONS:
- Brand: Juup
- Product Number: JUUP-iivari-punos-stove
- Height: 910 mm
- Depth: 593 mm
- Width: 515 mm
- Diameter: 515 mm
- Material: Steel
- Color: Black
- GTIN Code: 6429830099154
- Country of Manufacture: Finland
- Flue Connection Diameter (mm): 115
- Product Weight (kg): 95
- Color Detail: Matte Black
- Material Detail: Sheet (carbon steel)
- Type of Stove: Mesh stove
- With Water Tank: No
- Delivery Contents: Installation, operation, and sauna use instructions included. Sauna stones are not included
- Recommended Sauna Stone Size: 10-15 cm
- For non-combustible materials, we recommend a protective distance of 50 mm for air circulation
- Door: Glass door, handedness not changeable
- Adjustment Range of Adjustable Legs: 0-5 cm
- Thickness of Fire Cover: 5 mm
- Maximum Length of Firewood: 40 cm
- Suitable Firewood Diameter: 5-12 cm
- Nominal Power: 27 kW
- Firebox Size: 400x400x600 mm (H x W x D)
- Required Temperature Class for Flue: T600
- Flue Connection on top of the stove, position from the back edge to the center of the hole: 204 mm
- Flue Connection on top of the stove, position from the floor to the bottom of the hole: 1000 mm
- Flue Connection at the back of the stove, position from the floor to the center of the hole: 795 mm
- Maximum Amount of Stones (kg): 85
- Minimum Sauna Volume (m³): 9
- Maximum Sauna Volume (m³): 18
- Protection Distance to Ceiling (mm): 1100
- Protection Distance to Side (mm): 200
- Protection Distance to Front (mm): 300
- Protection Distance to Back (mm): 200
- Flue Connection Location: On top, At the back
- Package Width (mm): 600.00
- Package Height (mm): 1100.00
- Package Depth (mm): 800.00
- Freight Weight (kg): 110.00
OPTIONAL:
Flue connector: side or vertical installation
Handles: Pine or walnut tree
