Description
A stylish guesthouse for your garden
The Lillevilla 449 guesthouse is a spacious and bright flat-roofed building made of 44 mm thick lightweight logs. It’s perfect for enjoying summer days or creating a cozy atmosphere on autumn evenings! Thanks to its large windows, this model is particularly suitable as a studio or even a summer kitchen.
Key dimensions of the guesthouse

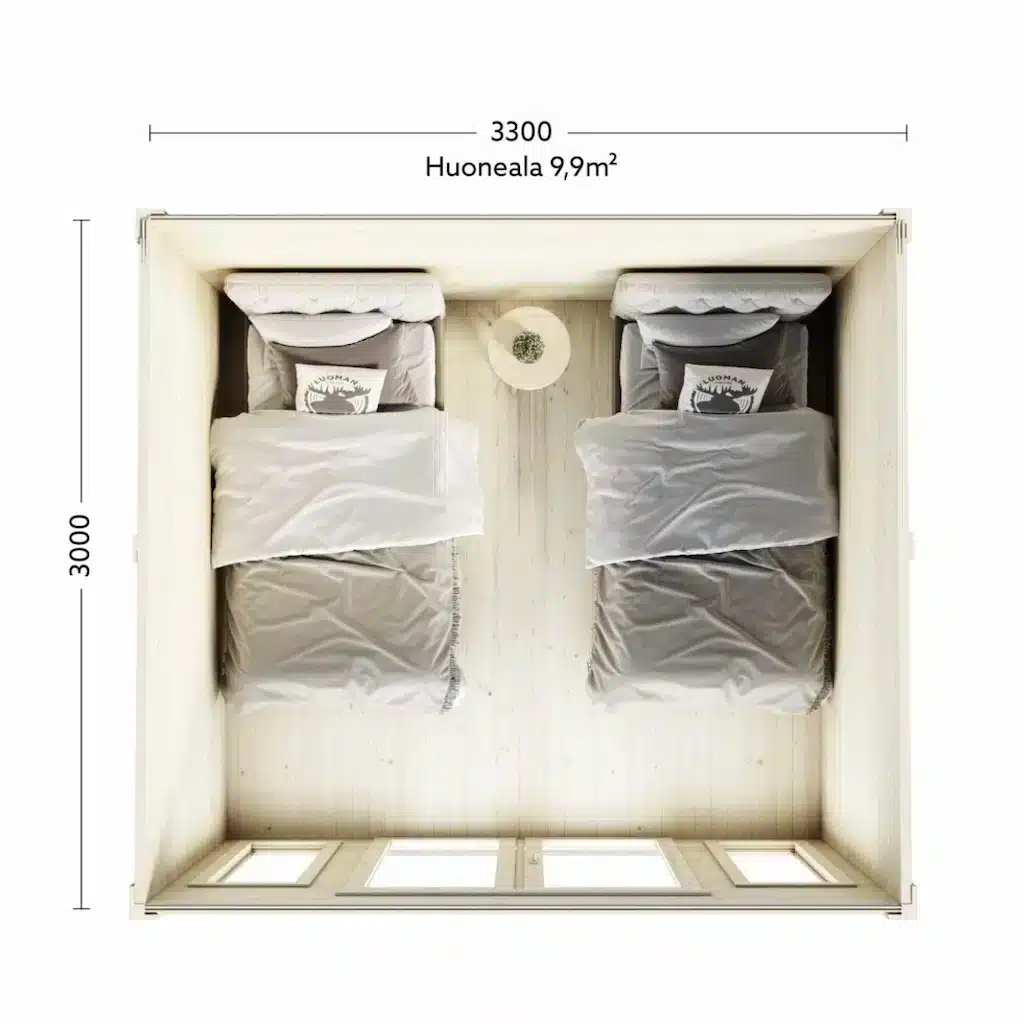

The floor area of this model is over 9.9 square meters, with a width of 3.3 m and a depth of 3 m. The ridge height of the guesthouse is 245 cm, and the roof area is 12.6 square meters.
The floorboards in this model are 21 mm thick, while the 44 mm thick wall logs feature a double tongue-and-groove design, making the structure exceptionally sturdy. This product uses a “city corner” design, meaning the wall logs are attached to corner posts.
If desired, you can also order an additional outward-opening window for the Lillevilla Unari model. The window is pre-glazed with insulated safety glass (2K4-6-4), with a glass size of 468 x 1406 mm. The hinges are pin hinges, with three per window panel. The window is available in both left- and right-handed versions. Handles and trim boards are included in the delivery. Once the Lillevilla Unari is erected, cut an opening for the window in your desired location and install it using the provided trim boards.
Included in the delivery
The product package includes logs, doors, windows, floor and roof boards, fittings, nails, and screws. Roofing material is not included in the delivery. Tile or shingle roofing is not recommended. The roofing material must be installed immediately after erecting the structure. Additional windows can also be ordered.
The cabin parts are pre-processed at the factory. However, since assembly is required, ensure you have common tools like a measuring tape, spirit level, hammer, saw, screwdriver, and drill. Assembly tips for our products can also be found down below.
Surface treatment
The surface treatment of the building must be carried out immediately after assembly, weather permitting. Use breathable surface treatment products specifically designed for log surfaces. Paints forming non-breathable plastic films must not be used.
Building permit information
Check the need for a building permit in advance with your local building authority. Drawings required for the permit application can be downloaded from this page.
Technical specifications:
Floor area (m²): 9.9
Base dimensions (mm x mm): 3300 x 3000
Wall thickness (mm): 44
Ridge height (mm): 2450
Roof area (m²): 12.6
Roof dimensions (mm x mm): 3700 x 3390
Roof slope (degrees): 3.00
Ridge length (mm): 3770
Roof section length (mm): 3450
Roof boards (mm): 16
Floorboards (mm): 21
Windows:
Insulated safety glass CE 4/6/4 mm, Type R8 (446×1496) 2 pcs
Opening direction: Fixed
Door:
Insulated safety glass CE 4/9/4 mm, Type D19 (1694×1960)
Roofing Material: Not included
Package Dimensions (mm) and Weight: 3900 x 750 x 1150 / 800 kg
EAN: 6418635046234
Product Code (SKU): 0144 33 30 00
Additionally available:
Windows:
Window Type E7 – Left-Handed (+296.10 €)
Window Type E8 – Right-Handed (+296.10 €)
Roofing Materials:
30128 Sealed Joint Roofing Package (+400.50 €)
Eaves Flashing Package:
30135 Eaves Flashing Package (+108.00 €)
Insulation Packages:
30100 Floor Insulation Package (+409.50 €)
30110 Roof Insulation Package (+657.00 €)
Elevation Package:
2 Log Elevation Package (+360.00 € )
Drawings for permit application
