Description
A Spacious and Elegant Cabin Option

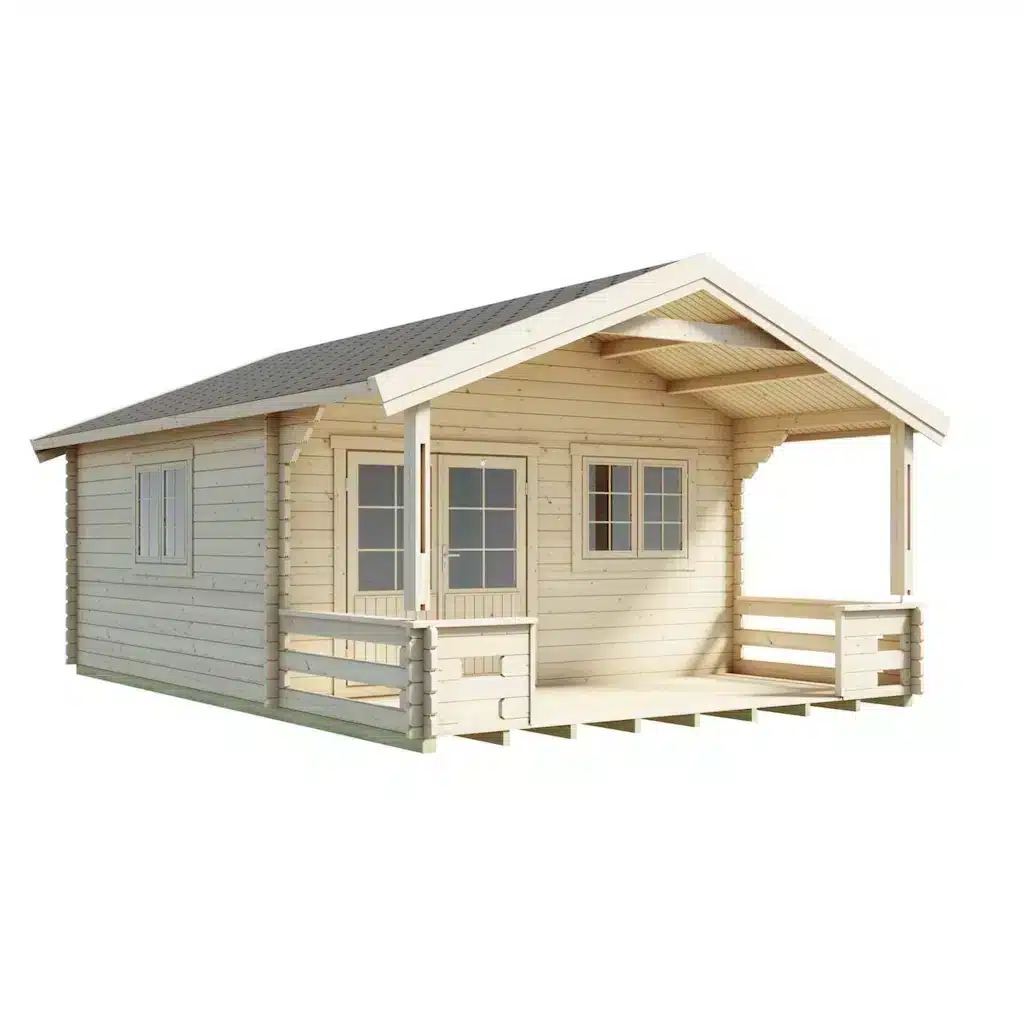

The Lillevilla Saimaa guest cabin represents our classic collection. With nearly 20 square meters of interior space, it can accommodate several sleeping places as well as a table with chairs. Additionally, the almost 10 square meter terrace provides extra space for a sofa set or other furniture. The roof overhang offers protection from the sun and rain.
Included in the Delivery
The product package includes logs, doors, windows, floorboards, roof boards, fittings, nails, and screws. Threaded rods for securing the corners are also included. The guest cabin is made of sturdy 44 mm lightweight logs with a double tongue-and-groove design. The floorboards are 19 mm thick, and the roof boards are 16 mm thick. The package includes underlay roll roofing. Tile roofing is not recommended. The roofing material must be installed immediately after assembling the building.
The cabin parts are pre-processed at the factory. However, since assembly is required, make sure you have common tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.
Surface Treatment
The building’s surface treatment must be carried out immediately after assembly, weather permitting. Use breathable surface treatment products specifically designed for log surfaces. Paints that create non-breathable plastic films must not be used.
Building Permit Information
Check the need for a building permit in advance with your local building authority. Drawings required for the building permit application can be downloaded from this page.
Technical specifications:
Floor area (m²): 19.8
Base dimensions (mm x mm): 4450 x 4450
Wall thickness (mm): 44
Ridge height (mm): 3250
Sidewall height (mm): 2300
Roof area (m²): 37.6
Roof dimensions (mm x mm): 5380 x 6860
Ridge length (mm): 6795
Roof section length (mm): 2766
Roof slope (degrees): 21.00
Roof boards (mm): 16
Floorboards (mm): 19
Windows: Insulated safety glass CE 4/6/4 mm, Type D (1187×870), 2 pcs
Door: Insulated safety glass CE 4/6/4 mm, Type D (1697×1820)
Terrace area (m²): 8.9
Terrace width: 4450 mm
Terrace depth: 2000 mm
Package details: 2 packages
Package dimensions (mm) and weight:
5500 x 530 x 1150 / 1000 kg
6800 x 520 x 1150 / 1070 kg
EAN: 6418635007679
Product Code (SKU): 0144 445 445 00
Additionally available:
Roofing Material
30120 Shingle Roofing Package (+643.50 €)
30128 Sealed Joint Roofing Package (+287.55 €)
Eaves Flashing Package
30137 Eaves Flashing Package (+171.00 €)
Insulation Packages
30104 Floor Insulation Package (+693.00 €)
30109 Roof Insulation Package (+1372.50 € €)
Drawings for permit application
