Description
A versatile outdoor building for living or storage

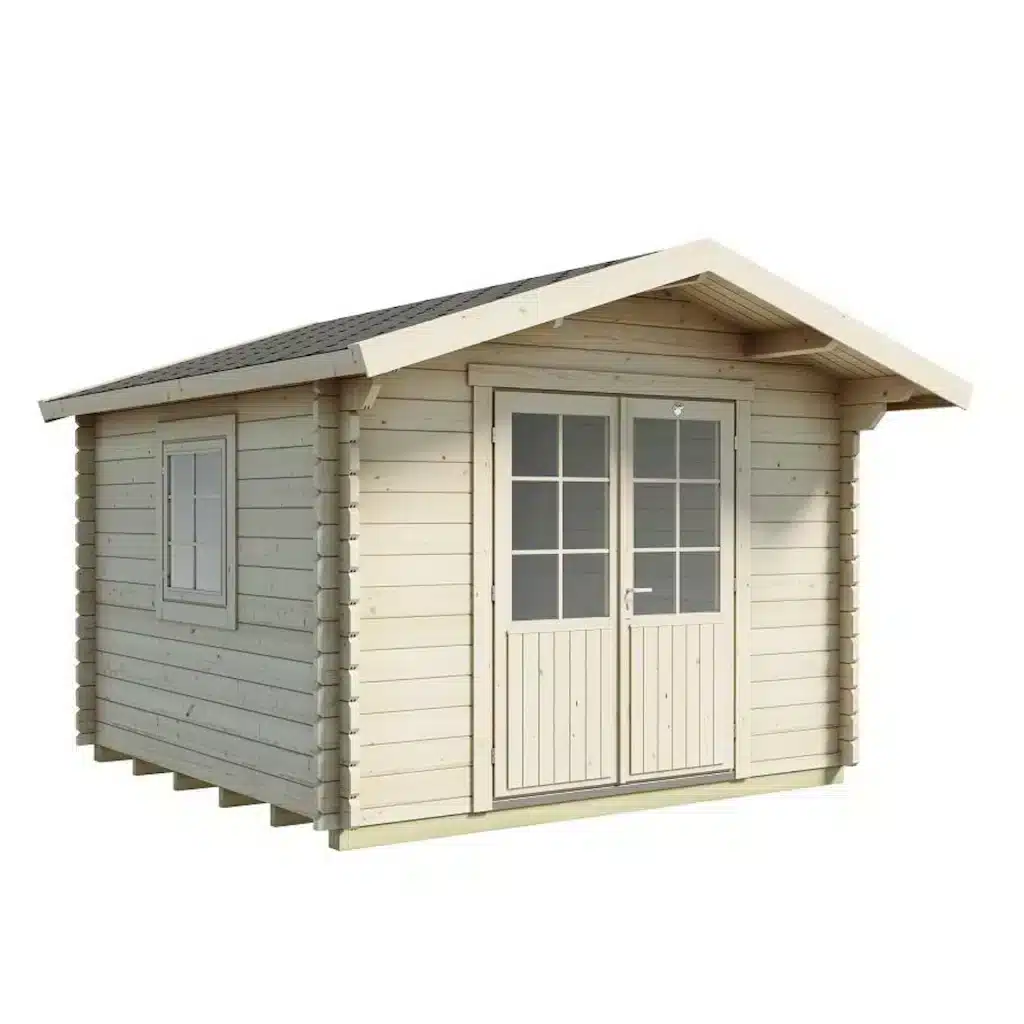

The Lillevilla Roine cabin is a spacious and sturdy outdoor building, ideal for accommodating summer guests. Alternatively, it also serves well as a storage space. The floor area of this model is just over 9 m², with both sides measuring 3 meters in length. The ridge height of the Lillevilla Roine cabin is approximately 252 cm. Both the window and door feature insulated safety glass (CE 4/6/4mm).
Included in the Delivery
The product package includes logs, a door, a window, floor and roof boards, fittings, nails, and screws. The floorboards of the cabin are 21 mm thick. The logs are 44 mm thick and feature a double tongue-and-groove system, making the structure especially sturdy.
Roofing material is not included in the delivery. We do not recommend tile roofing. The roofing material must be installed immediately after assembling the building.
The parts of the cabin are pre-processed at the factory. However, as assembly is required, ensure you have common tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.
Surface treatment
The surface treatment of the building must be carried out immediately after assembly, weather permitting. Use breathable surface treatment products specifically designed for log surfaces. Paints forming non-breathable plastic films must not be used.
Building permit information
Check the need for a building permit in advance with your local building permit authority.
Technical specifications:
Floor area (m²): 9

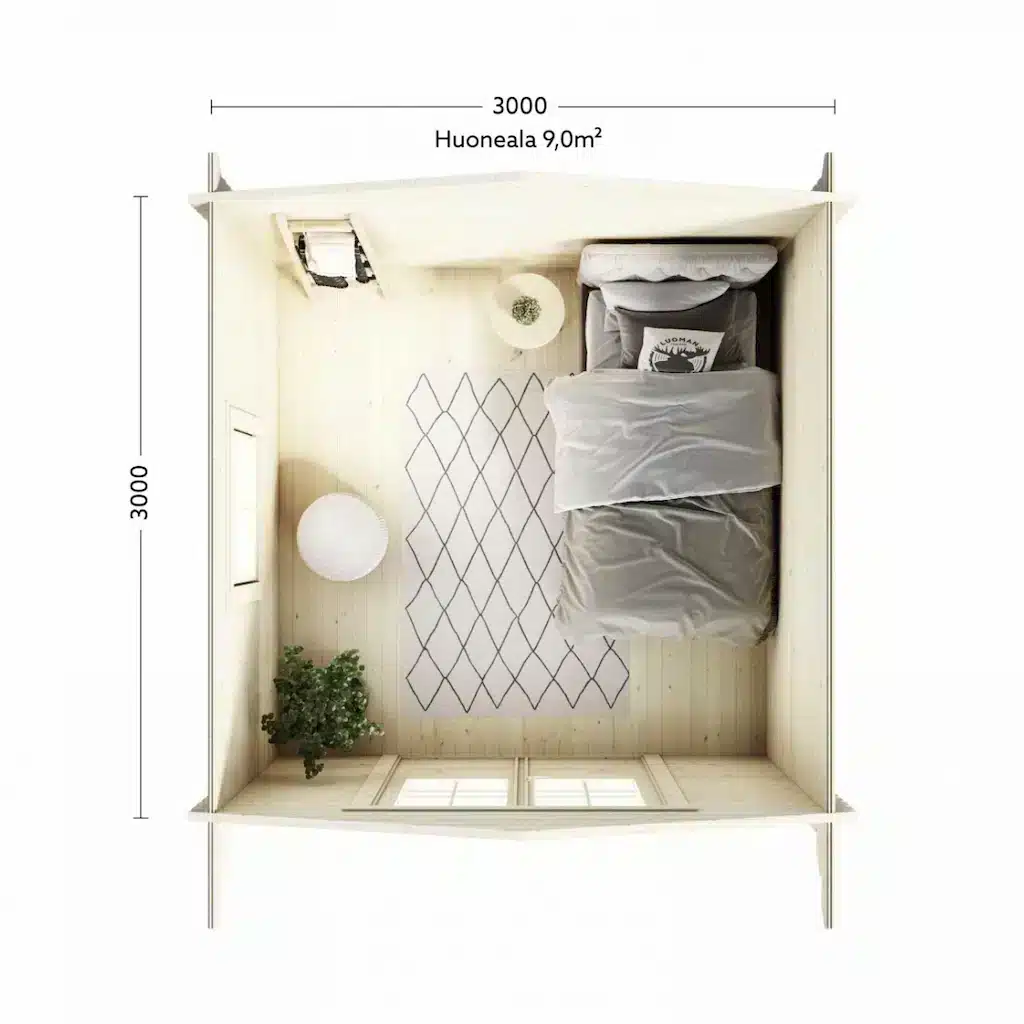

Base dimensions (mm x mm): 3000 x 3000
Wall thickness (mm): 44
Ridge height (mm): 2515
Roof area (m²): 13.67
Roof dimensions (mm x mm): 3450 x 3840
Roof slope (degrees): 18
Ridge length (mm): 3800
Roof section length (mm): 1796
Roof boards (mm): 19
Floorboards (mm): 21
Windows:
Glass: Insulated safety glass CE 4/6/4mm, Type G (896×880)
Opening direction: Outwards
Door:
Glass: Insulated safety glass CE 4/6/4mm, Type D13 (1497×1900)
Roofing Material: Not included
Dimensions: 3800 x 730 x 1150
Weight: 910 kg
Product Code (SKU): 0144 30 30 16
Additionally available:
30119 Felt package (+ 328.50 €)
30127 Seamless roofing package (+ 319.50 €)
30135 Eaves metal sheet package (+ 108 €)
30100 Floor insulation package (+ 409.50 €)
30105 Roof insulation package (+ 684.00 €)
Drawings for permit application
