Description

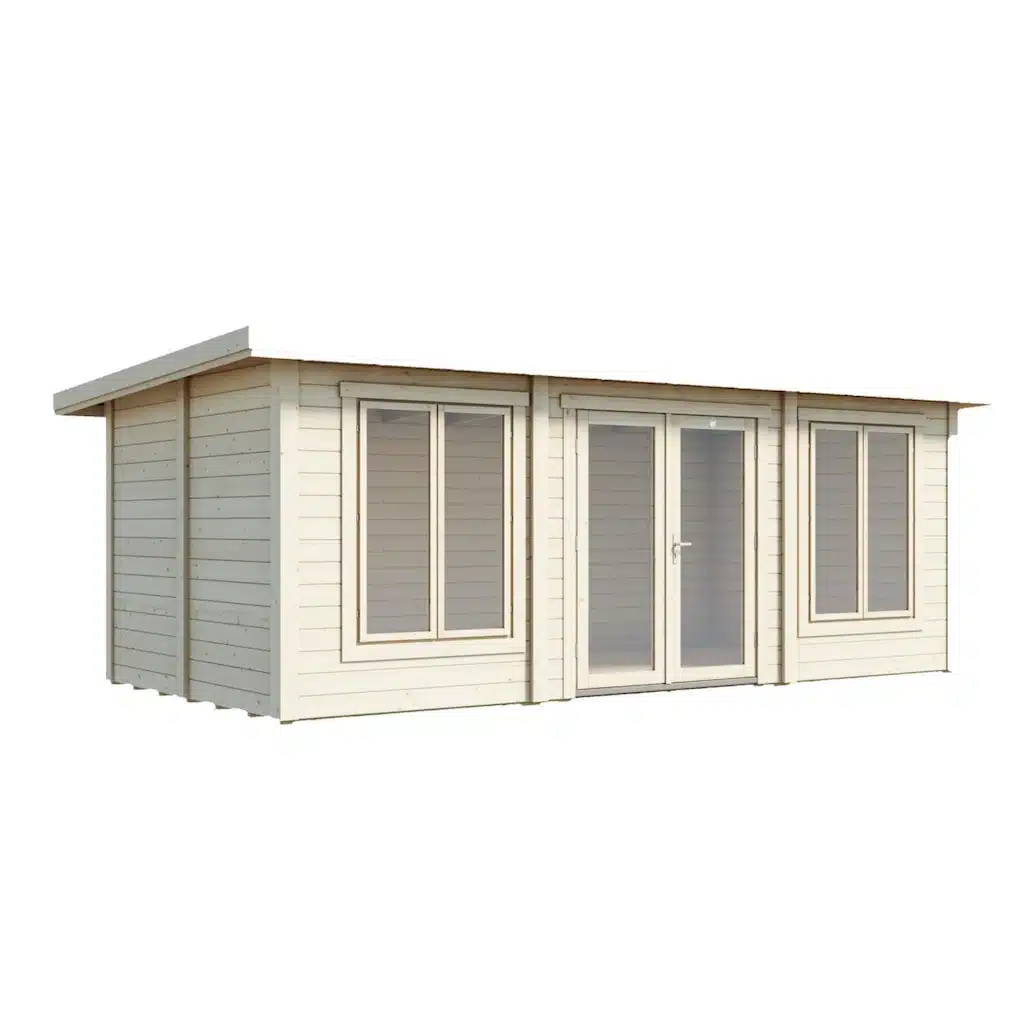

Guesthouse Lillevilla Loukinen
The Lillevilla Loukinen is a large guesthouse featuring big windows and wide glass doors, making it a stylish garden structure! This striking model offers numerous options for use. The guesthouse is well-suited as an artist’s studio, summer kitchen, or even as a dining area for large groups. The double doors are centrally placed, flanked by two large windows. All doors and windows in Lillevilla Loukinen are equipped with CE-approved insulated safety glass.
Key Dimensions of the Guesthouse

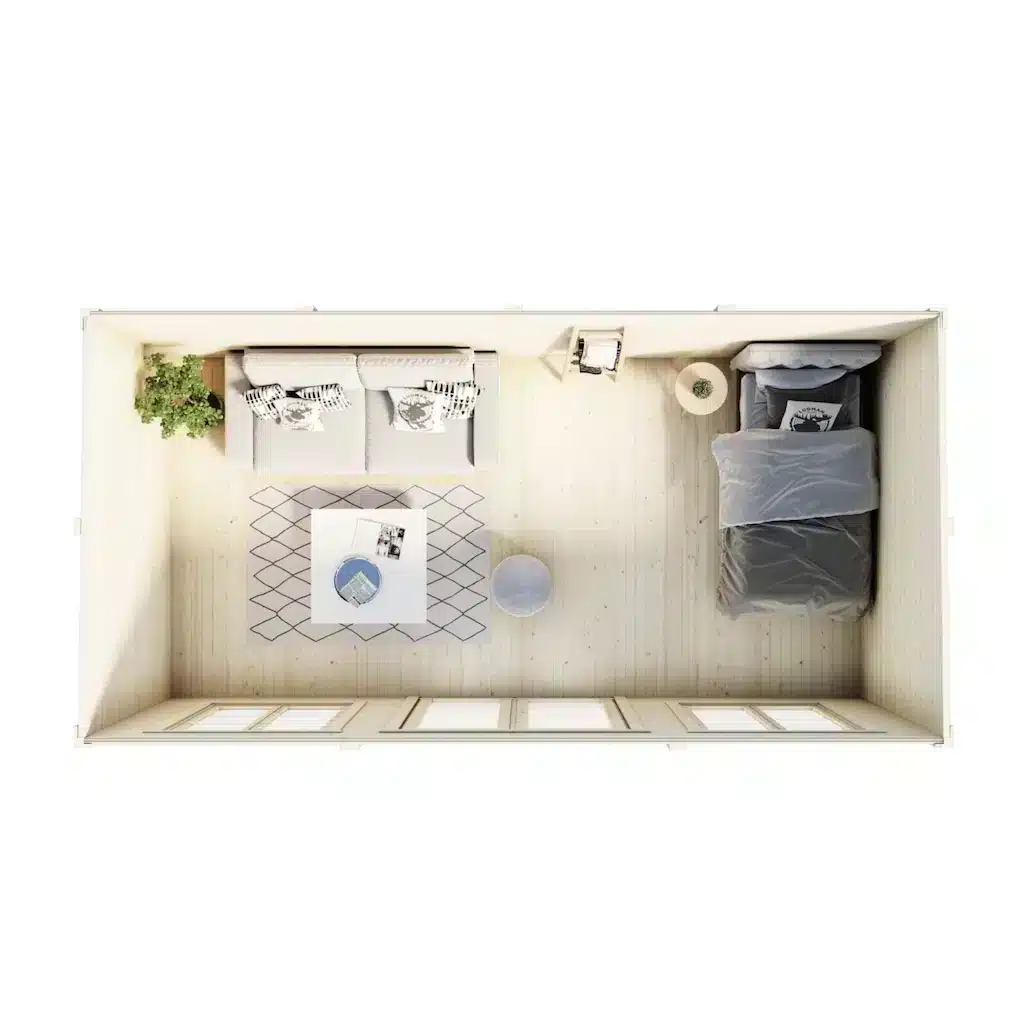

Floor area: 18 m² (width: 6 m, depth: 3 m)
Ridge height: 245 cm
Roof area: 22 m²
The 21 mm thick floorboards and 44 mm thick double tongue-and-groove wall logs provide exceptional durability. This model features a “city corner” design, meaning the wall logs are attached to corner posts. Doors and windows include CE-approved insulated safety glass.
Included in the Delivery
The product package includes logs, doors, windows, floorboards, roof boards, fittings, nails, and screws. Roofing material is not included. You can order Katepal TopTite 3 roll roofing from this page. Tile or shingle roofing is not recommended. The roofing material must be installed immediately after the building is assembled.
The cabin parts are pre-processed at the factory. However, since assembly is required, ensure you have common tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.
Surface Treatment
The building’s surface treatment must be carried out immediately after assembly, weather permitting. Use breathable surface treatment products specifically designed for log surfaces. Paints that create non-breathable plastic films must not be used.
Building Permit Information
Check the need for a building permit in advance with your local building authority. Drawings required for the building permit application can be downloaded from this page or requested from our customer service.
Technical specifications:
Floor area (m²): 18
Base dimensions (mm x mm): 6000 x 3000
Wall thickness (mm): 44
Ridge height (mm): 2450
Roof dimensions (mm x mm): 6460 x 3390
Roof area (m²): 22
Roof slope (degrees): 2.60
Ridge length (mm): 6470
Roof section length (mm): 3466
Roof boards (mm): 16
Floorboards (mm): 21
Windows: Insulated safety glass CE 4/6/4 mm, Type S (1187×1550), 2 pcs
Opening direction: Outwards
Doors: Insulated safety glass CE 4/9/4 mm, Type D19 (1694×1960)
Roofing Material: Not included
Package Dimensions (mm) and Weight: 6000 x 700 x 1150 / 1750 kg
Product Code (SKU): 0144 60 30 01
Additionally available:
Roofing Material
30128 Sealed Joint Roofing Package (+400.50 €)
Eaves Flashing Package
30136 Eaves Flashing Package (+135.00 €)
Insulation Packages
30104 Floor Insulation Package (+693.00 €)
30114 Roof Insulation Package (+1129.50 €)
Drawings for permit application
Surface treatment instructions
