Description
54.6V 2A fast charging
Smart 109.2W HyperCharge is the total game changer

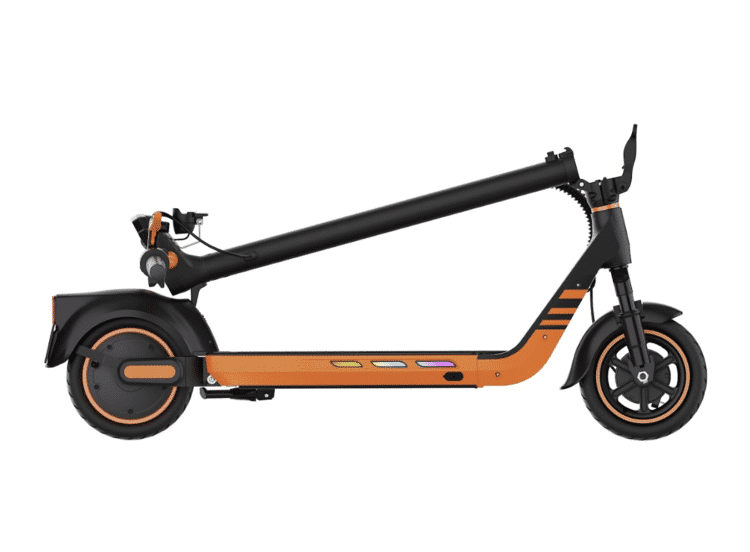

Flip, fold, clip
Innovative folding design evaluated by EN17128 for a minimalist
appearance, convenient storage, and more stability.
RGB lighting system
RGB lights on both sides with different styles ensure
your coolest riding experience at night.
View everything
Easy to control, try and you will know
Multifunctional dashboard
Real-time display of various data: speed speed mode, power, lock status and other driving information at a glance
One button, multiple functions
Intuitive controls, one button, multiple functions: Not only does the button turn the power on and off, it can also be used
to switch between speed modes and to turn the headlights on and off
Sensitive hand throttle
The hand throttle’s moderate resistance and timely feedback make driving speed easier to control and the acceleration
smoother.
Comfortable TPR grip
The handlebar is made of TPR material
for a more comfortable grip which can
effectively improve the driving experience.
Intelligent anti-theft
Connect to the King Song APP and lock the car. The owner will be immediately
remind by the alarm if any movement of the scooter.

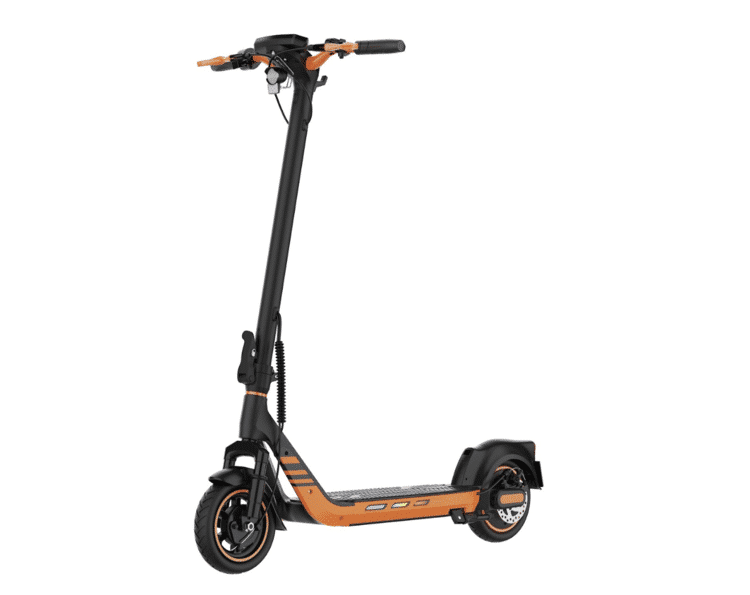

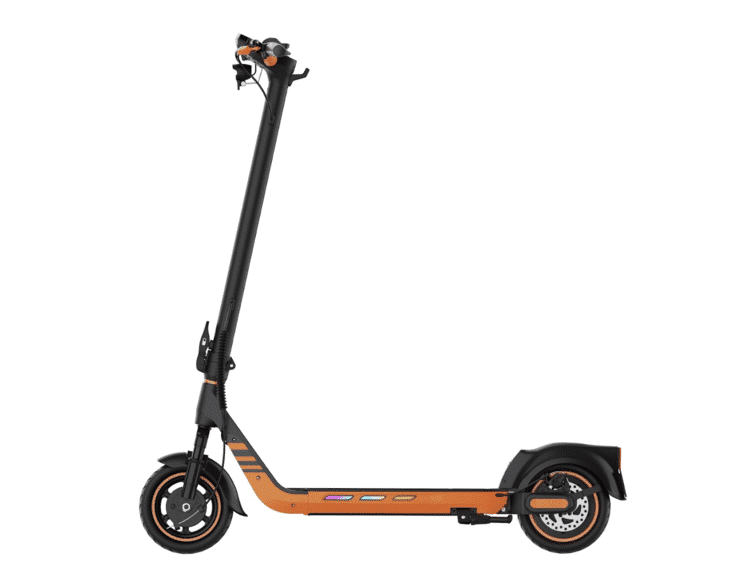

TECHNICAL SPECIFICATIONS:
| Model No. | KS-N14 |
| Product Name | 37 V, 500 W Electric Scooter |
| Unfolding Size | 117(L)*64(W)*123(H) CM |
| Folding Size | 117(L)*64(W)*51(H) CM |
| Paking size | 127.5(L)*22(W)*57(H) CM |
| MAX Loading | 120 KG |
| Applicable Age | 14-50 Years |
| Applicable Height | 150-200 CM |
| Prompting Mode | Mechanical bell + LED Digital Display Screen |
| Accelerator | Press Throttle |
| Brake | Bilinear Brake Lever + Front Drum Brake + Rear Disc Brake (120 mm Large Brake Disc) |
| Suspension | Front & Rear Spring Suspension |
| Tyre Size | 8.5” * 2” Honeycomb Tyres or Tubeless Tyres |
| Max Speed | 30 KM/H |
| Mileage | 35 KM |
| Gradeability | 20°/36% |
| Applicable Terrain | Cement roads, asphalt roads, flat dirt road, steps not higher than 2cm, and trenches not exceeding 5cm |
| Working Temp | -10℃ – 50℃ |
| Storage Temp | -20℃ – 60℃ |
| IP Level | IP54 |
| Frame Material | Aluminum Alloy |
| Net Weight | 21.7KG |
| Gross Weight | 24.7 KG |
| Rated Voltage (VDC) | 37 V |
| Charge Voltage (VDC) | 42 V |
| Rated Charging current | 2A |
| Battery Capacity | 10.4 Ah / 384.8 Wh (10S4P) |
| Battery Protection Spec. | Temperature /Short Circuit /Low Voltage /Over Current /Over Charged Protection |
| Cycle life | 500 charge-discharge cycles greater than 70% of rated capacity |
| Storage Time | 12 Months |
| Battery Weight | 2.2 KG |
| Scheme | FOC Sine Wave Control |
| Operating Voltage | 30-43 VDC |
| Current limit | 25 A |
| Motor Type | Brushless Hall DC Motor |
| Rated Power | 500 W |
| Peak Power | 900 W |
| Rated Power | 84W |
| In-put Voltage | AC 100 V-240 V |
| Out-put Voltage | 42 V |
| Out-put Current(ADC) | 2A |
| Charging Time | Around 5-6h |
| Motherboard | kingsong Self-developed controller system | ||
| Bluetooth System | Built-in 5.0 Bluetooth module, can be connected to the Kingsong APP to set vehicle parameters | ||
| Buzzer | The whole scooter built in a buzzer for system operation indication and fault alarm. | ||
| Temperature Control System | Real-time monitoring of motherboard and motor temperature. | ||
| Anti-theft Function | NO | ||
| Button | Turn-on: Long press for 2S. Turn-off: Long press for 3S. LED light turn-on: Shortly press the button, the display light signal would be lightened. LED light turn-off: Shortly press the button, the display light signal would be off. Speed, Voltage, Current showing: After the display turn-on,thrice-press the button, switch the signal of “V”,” A”, “KM/H”. Speed level: twice-press the buttons, switch from 1- 4 speed level.(P4 is the pedestrian mode) |
||
