Sale!


The Netherlands (140m2)

Avalible 3 different projects:

  • Basic
  • Standard
  • Passive



Original price was: €39,800.00.Current price is: €35,904.00. not inc. VAT

Description

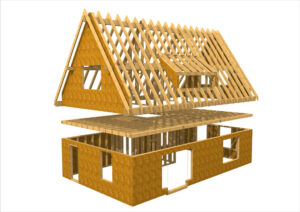

BASIC

35904 € (without VAT)

External Prefabricated Walls
Thickness207 mm
Timber Framework
Softwood board:

  • Kiln dried (16 %)
  • Planned, calibrated
  • Graduated (C16/C24)
  • Dimensions: 195×72 mm

Wind protection board:

  • OSB – 3
  • Thickness – 12 mm



Internal Structural Walls

Thickness: 195 mm

Timber Framework:

Softwood board:

  • Kiln dried (16%)
  • Planned, calibrated
  • Graduated (C16/C24)
  • Dimensions 195×72 mm

Joists System. Quantity: 1 Set

  • Joist’s Beams:

Dimensions 95×195 mm (Softwood)

Kiln dried (16 %)

Planned, calibrated

Graduated (C16/C24)

Rafter system. Quantity: 1 Set

  • Rafters:

Dimensions 70×195 mm (Softwood)
Kiln dried (16%)
Planned, calibrated
Graduated (C16/C24)

  • Purlins:

Dimensions (boards 70×195 mm; 140×195 mm; 210×195 mm):
Kiln dried (16 %)
Planned, calibrated
Graduated (C16/C24)
Glue – D4 Compatible

Full set of installation hardware.

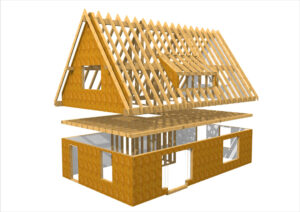

STANDARD

41213,1 € (without VAT)

External Prefabricated Walls
Thickness: 219,5 mm
Timber Framework
Softwood board:

  • Kiln dried (16 %)
  • Planned, calibrated
  • Graduated (C16/C24)
  • Dimensions: 195×70 mm

Wind protection board:

  • OSB – 3
  • Thickness – 12 mm



Insulation:
RockWool Superrock:

  • Lambda D=0.035 W/mK
  • U-value (200 mm)= 0.175 W/m2K
  • Euroclass – A1

Vapor membrane:
Primavap-Sd-8
Internal board:
Gypsum cardboard

  • Thickness – 12.5 mm

Internal Structural Walls
Thickness: 195 mm
Timber Framework:
Softwood board:

  • Kiln dried (16%)
  • Planned, calibrated
  • Graduated (C16/C24)
  • Dimensions 195x72mm

Joists System. Quantity: 1 Set

  • Joist’s Beams:

Dimensions 95×195 mm (Softwood):
Kiln dried (16%)
Planned, calibrated
Graduated (C16/C24)

Rafter system. Quantity: 1 Set

  • Rafters:

Dimensions 70x195mm (Softwood):
Kiln dried (16%)
Planned, calibrated
Graduated (C16/C24)

  • Purlins:

Dimensions (boards 70×195 mm; 140×195 mm; 210×195 mm):
Kiln dried (16%)
Planned, calibrated
Graduated (C16/C24)
Glue – D4 Compatible

Full set of installation hardware.

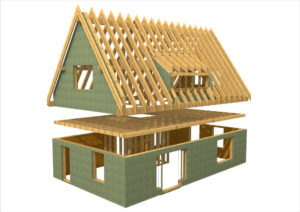

PASSIVE

59981,1 € (without VAT)

External Prefabricated Walls
Thickness: 319 mm
Timber Framework
Softwood board:

  • Kiln dried (16 %)
  • Planned, calibrated
  • Graduated (C16/C24)
  • Dimensions: 195×70 mm

Wind protection board:

  • OSB – 3
  • Thickness – 12 mm



Facade membrane:
Density 130 g/m2
Effective thickness of the vapor diffusion 0,015 m
Vapour throughout 80g/m2

Facade insulation:

Rockwool FrontRock MAX E 100 mm:

  • Lambda D=0.036 W/mk
  • U-value (200 mm)= 0.175 W/m2K
  • Euroclass – A1

Internal Insulation:

RockWool Superrock:

  • Lambda D=0.035 W/mK
  • U-value (200 mm)= 0.175 W/m2K
  • Euroclass – A1

Internal board:

  • OSB – 3
  • Thickness – 12 mm

Internal Structural Walls
Thickness: 195 mm
Timber Framework:
Softwood board:

  • Kiln dried (16 %)
  • Planned, calibrated
  • Graduated (C16/C24)
  • Dimensions 195×70 mm



Joists System. Quantity: 1 Set

  • Joist’s Beams:

Dimensions 95×195 mm (Softwood):
Kiln dried (16%)
Planned, calibrated
Graduated (C16/C24)

Double Glued Rafter system.
Quantity: 1 Set

  • Rafters:

Dimensions 70×390 mm (Softwood):
Kiln dried (16 %)
Planned, calibrated
Graduated (C16/C24)

  • Purlins:

Dimensions (boards 70×195 mm; 140×195 mm; 210×195 mm):
Kiln dried (16 %)
Planned, calibrated
Graduated (C16/C24)
Glue – D4 Compatible

Insulation for double rafters

RockWool Superrock :

  • Lambda D=0.035 W/mk
  • U-value (400 mm) = 0.0875 W/m2K
  • Euroclass – A1

Full set of installation hardware.
